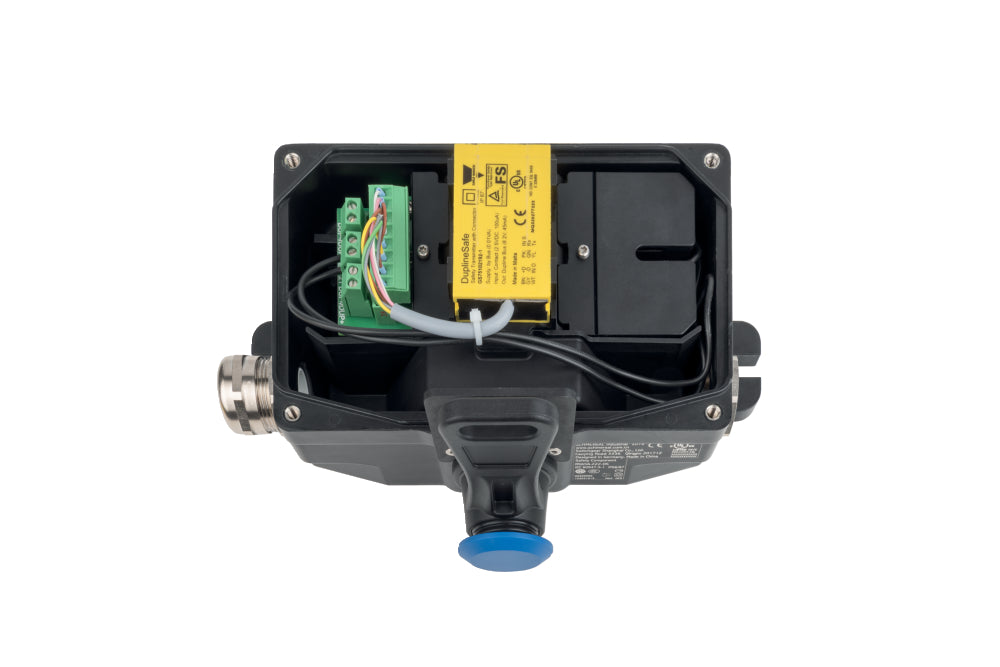

Schmersal RS655-Z22-DS Seilzug-Notschalter, sku: 153031618

Schmersal RS655-Z22-DS Seilzug-Notschalter, sku: 153031618

€1.163,42
€1.163,42
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 153031618

  • Metallgehäuse
  • Seilzug- und Seilrissfunktion
  • Schutzart IP66, IP67
  • Zentrale Anschlussklemme
  • Mechanische Schaltzustandsanzeige
  • Zweiseitige Wirkweise / Seillänge bis 2 x 100 m
  • Product type description: RS655-Z22-DS
  • Article number (order number): 153031618
  • EAN (European Article Number): 4030661532950
  • eCl@ss number, version 12.0: 27-37-12-01
  • eCl@ss number, version 11.0: 27-37-12-01
  • eCl@ss number, version 9.0: 27-37-12-01
  • ETIM number, version 7.0: EC002026
  • ETIM number, version 6.0: EC002026
  • Certificates: TÜV, cULus, CCC
  • Standards: EN 620, EN ISO 13850, EN IEC 60947-5-1, EN IEC 60947-5-5
  • Enclosure material: Grey cast iron, painted
  • Material of the housing cover: Grey cast iron, painted
  • Length of the wire, maximum: 100 m
  • Gross weight: 6,200 g
  • Number of auxiliary contacts: 2
  • Number of safety contacts: 2
  • Safety classification: 2
  • Standards: EN ISO 13849-1
  • Mission time: 20 Year(s)
  • B10D Normally-closed contact (NC): 100,000 Operations
  • Actuating element: Roller lever N300
  • Mechanical life, minimum: 100,000 Operations
  • Actuation direction: Each time 75° right-hand side and left-hand side rotation
  • Termination: Cage clamp
  • Cable entry: 2 x M25 x 1.5
  • Cable section, minimum: 0.5 mm², flexible
  • Cable section, maximum: 2.5 mm², flexible
  • Degree of protection: IP67, IP66
  • Ambient temperature: -40 ... +70 °C
  • Protection class: I
  • Rated insulation voltage Ui: 300 V
  • Rated impulse withstand voltage Uimp: 4 kV
  • Degree of pollution: 3
  • Thermal test current: 6 A
  • Rated operating voltage: 230 VAC
  • Rated operating voltage: 24 VDC
  • Utilisation category AC-15: 230 VAC
  • Utilisation category AC-15: 3 A
  • Utilisation category DC-13: 24 VDC
  • Utilisation category DC-13: 3 A
  • Switching principle: Snap action
  • Material of the contacts, electrical: Silver
  • Feldbus Protokoll: DuplineSafe
  • Rated impulse withstand voltage Uimp: 0.8 kV
  • Cable section, minimum: 0.2 mm², rigid, 0.25 mm², flexible
  • Cable section, maximum: 2.5 mm², flexible, 4 mm², rigid
  • Rated operating voltage: 8.3 VDC
  • Current consumption: 1 mA
  • Note (applications): Pull-wire emergency stop switches
