Schmersal

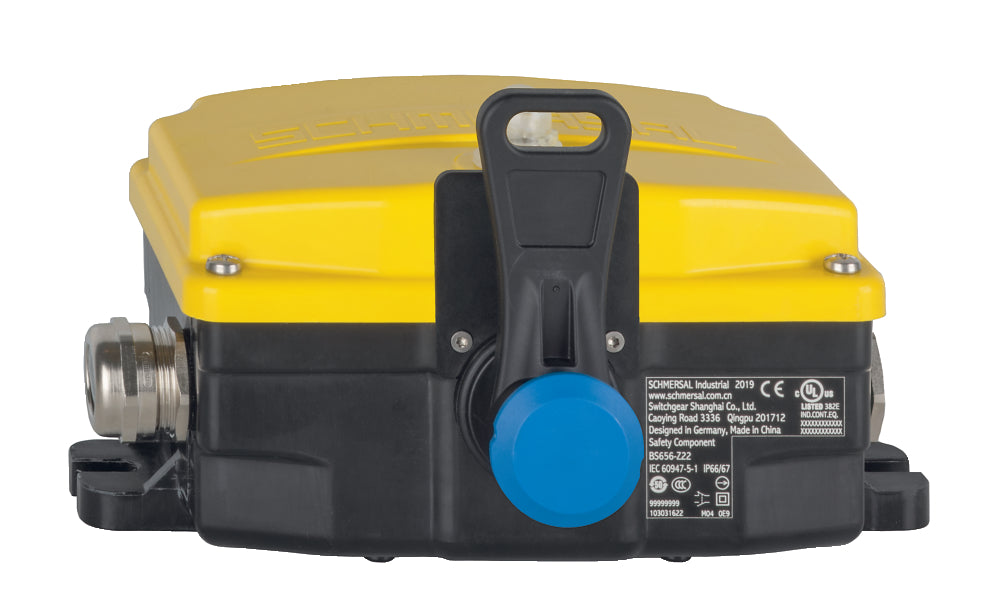

Schmersal RS656-Z22-G230 Seilzug-Notschalter, sku: 153031617

Schmersal RS656-Z22-G230 Seilzug-Notschalter, sku: 153031617

€576,59
€576,59
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 153031617

  • Schutzart IP66, IP67
  • Kunststoffgehäuse
  • Seilzug- und Seilrissfunktion
  • Zentrale Anschlussklemme
  • Mechanische Schaltzustandsanzeige
  • Zweiseitige Wirkweise / Seillänge bis 2 x 100 m
  • Product type description: RS656-Z22-G230
  • Article number (order number): 153031617
  • EAN (European Article Number): 4030661533025
  • eCl@ss number, version 12.0: 27-37-12-01
  • eCl@ss number, version 11.0: 27-37-12-01
  • eCl@ss number, version 9.0: 27-37-12-01
  • ETIM number, version 7.0: EC002026
  • ETIM number, version 6.0: EC002026
  • Certificates: TÜV, cULus, CCC
  • Standards: EN 620, EN ISO 13850, EN IEC 60947-5-1, EN IEC 60947-5-5
  • Enclosure material: thermosetting resin
  • Material of the housing cover: thermosetting resin
  • Length of the wire, maximum: 100 m
  • Gross weight: 2,771 g
  • Indicator lamp: Yes
  • Number of auxiliary contacts: 2
  • Number of safety contacts: 2
  • Safety classification: 2
  • Standards: EN ISO 13849-1
  • Mission time: 20 Year(s)
  • B10D Normally-closed contact (NC): 100,000 Operations
  • Actuating element: Roller lever N300
  • Mechanical life, minimum: 100,000 Operations
  • Actuation direction: Each time 75° right-hand side and left-hand side rotation
  • Termination: Cage clamp
  • Cable entry: 2 x M25 x 1.5
  • Cable section, minimum: 0.5 mm², flexible
  • Cable section, maximum: 2.5 mm², flexible
  • Degree of protection: IP67, IP66
  • Ambient temperature: -40 ... +70 °C
  • Protection class: II
  • Rated insulation voltage Ui: 300 V
  • Rated impulse withstand voltage Uimp: 4 kV
  • Degree of pollution: 3
  • Thermal test current: 6 A
  • Utilisation category AC-15: 230 VAC
  • Utilisation category AC-15: 3 A
  • Utilisation category DC-13: 24 VDC
  • Utilisation category DC-13: 3 A
  • Switching principle: Snap action
  • Material of the contacts, electrical: Silver
  • Note (applications): Pull-wire emergency stop switches
