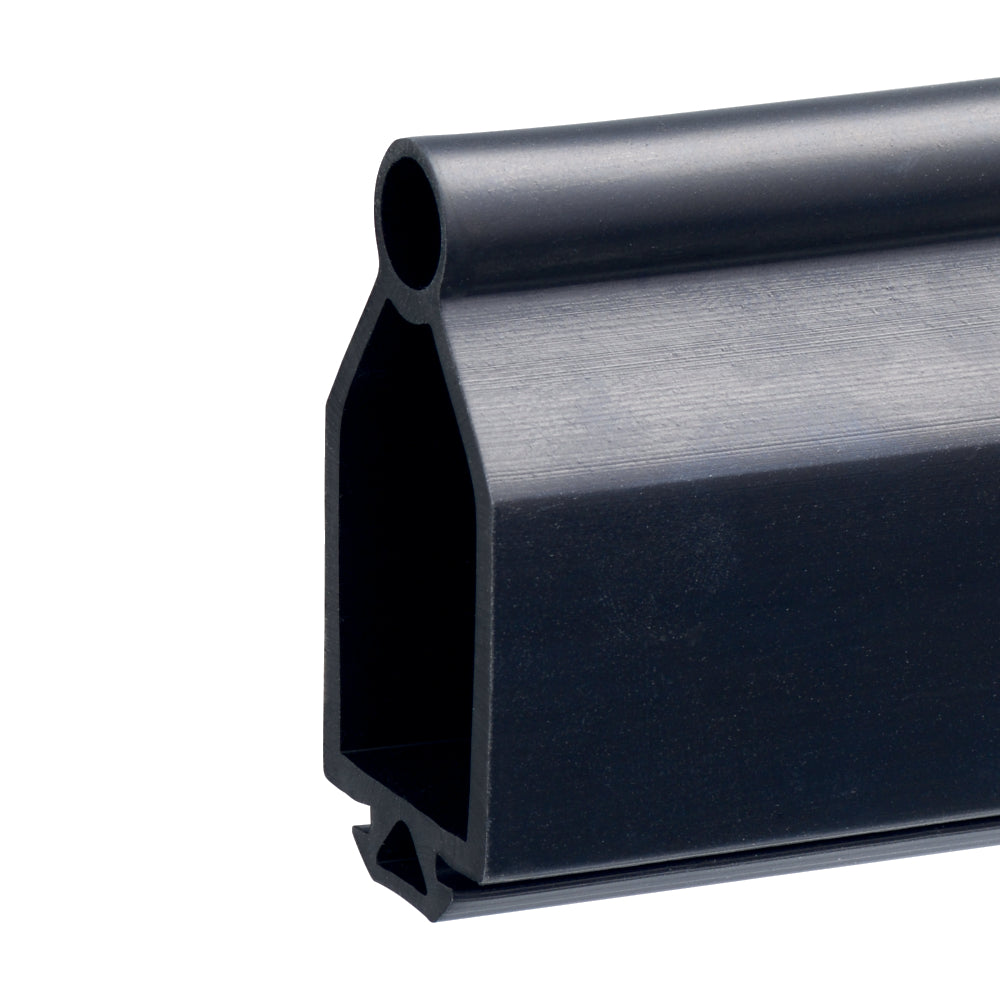

Schmersal SE-P70-10000 VERPACKT GUMMIPROFIL 10M Taktiler Sensor

Schmersal SE-P70-10000 VERPACKT GUMMIPROFIL 10M Taktiler Sensor

€548,35
€548,35
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 101172165

  • Schmutz und Feuchtigkeit im Profil werden weitgehend kompensiert
  • Unempfindlich gegen Umwelteinflüsse
  • ca. 70 mm hoch (inkl. Aluprofil)
  • Product type description: SE-P70-10000 PACKED RUBBER PROFILE 10 M
  • Article number (order number): 101172165
  • EAN (European Article Number): 4030661300221
  • eCl@ss number, version 12.0: 27-27-06-90
  • eCl@ss number, version 11.0: 27-27-06-90
  • eCl@ss number, version 9.0: 27-27-06-90
  • ETIM number, version 7.0: EC002887
  • ETIM number, version 6.0: EC002887
  • Note (Ordering data): A switch strip system is assembled from individual components. The components must be ordered separately., Example:Rubber profile, SE-P70-1250Al profile, SE-AL 20-1250Transmitter/receiver SE-SETSafety control module, SE-304 COptional:End plugs SE-T70; sticker SE-G8406Other accessories
  • Standards: EN ISO 13850
  • Resistance against permanent deformation: Good
  • Material resistance (acids): Good
  • Material of the rubber profile: EPDM, 65 Shore A
  • Note (Material of the rubber profile): International abbreviation: EPDM, 65 Shore A, Chemical name : Ethylene-propylene terpolymer
  • Gross weight: 6,800 g
  • Mechanical life, minimum: 20,000,000 Operations
  • Length: 10,000 mm
  • Width: 30 mm
  • Width, minimum: 400 mm
  • Width, maximum: 10,000 mm
  • Height, approx.: 70 mm
  • Degree of protection: IP67
  • Material temperature resistance (short-term), minimum: -50 °C
  • Material temperature resistance (short-term), maximum: +170 °C
  • Material temperature resistance (long-term), minimum: -30 °C
  • Material temperature resistance (long-term), maximum: +140 °C
  • Note (General): If a higher resistance is required, choose safety edge profiles with 20 µm plastic coating. The coating must be submitted to low mechanical loads only.
  • Material resistance (fuel): Low
  • Material resistance (solvents): low to satisfactory
  • Material resistance (oil): Low
  • Material resistance (ozone): Excellent
  • Material resistance, (rebound elasticity at 20 C): Good
  • Material resistance (weather): Excellent
