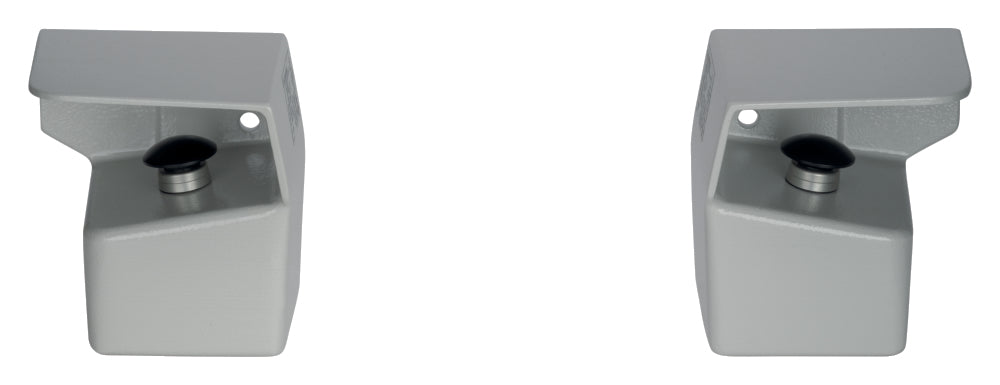

Schmersal SEP09.0.1.0.22/95 Zweihandbedienpulte, sku: 101022849

Schmersal SEP09.0.1.0.22/95 Zweihandbedienpulte, sku: 101022849

€726,53
€726,53
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 101022849

  • 2 schwarze Bedientasten (Stellteile) Ø 55 mm
  • Aluminiumgehäuse
  • mit abnehmbaren Aluminium-Deckel an der Unterseite
  • für getrennte Montage der Stellteile für die Zweihandbedienung
  • Product type description: SEP09.0.1.0.22/95
  • Article number (order number): 101022849
  • EAN (European Article Number): 4250116203246
  • eCl@ss number, version 12.0: 27-37-12-19
  • eCl@ss number, version 11.0: 27-37-12-19
  • eCl@ss number, version 9.0: 27-37-12-19
  • ETIM number, version 7.0: EC001260
  • ETIM number, version 6.0: EC001260
  • Certificates: cULus
  • Standards: EN ISO 13850, EN ISO 13851, EN IEC 60947-5-1, EN IEC 60947-1
  • Enclosure material: Aluminium
  • Enclosure coating material: powder-coated
  • Material of the sealing plate: Aluminium
  • Colour of the housing: RAL 7004
  • Gross weight: 3,500 g
  • Construction kit possible : Yes
  • Number of normally closed (NC): 2
  • Number of normally open (NO): 2
  • Number of operating push buttons (positioning parts): 2
  • Mechanical life, minimum: 10,000,000 Operations
  • Termination: Screw terminals M20 x 1.5
  • Cable section, maximum: 1.5 mm²
  • Width: 155 mm
  • Height: 160 mm
  • Depth: 150 mm
  • Length x Width x Height: Operating push buttons (positioning parts): 55 mm
  • Note: Per enclosure
  • Degree of protection: IP54
  • Rated insulation voltage Ui: 440 V
  • Thermal test current: 10 A
  • Utilisation category AC-15: 250 VAC
  • Utilisation category AC-15: 8 A
  • Utilisation category DC-13: 24 VDC
  • Utilisation category DC-13: 5 A
  • Recommendation (product combination): SRB201ZH, SRB200ZHX1, SRB 201ZHX3
  • Note (General): Optional: actuators with low actuating force, 1 NO/1 NC contact per unit
  • Note (Number of operating push buttons (positioning parts)): Consisting of: EDP55SW; EF10.1; EF03.1
