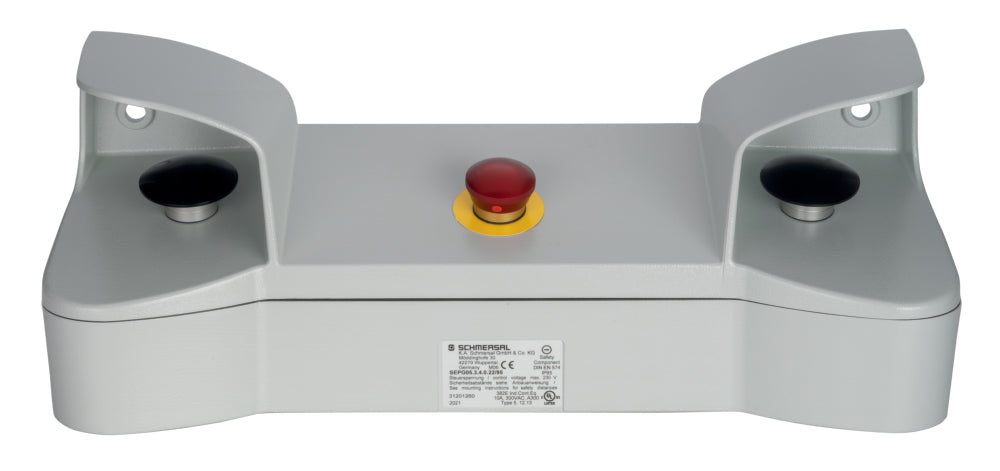

Schmersal SEPG05.3.4.0.22/95 Zweihandbedienpulte, sku: 101172765

Schmersal SEPG05.3.4.0.22/95 Zweihandbedienpulte, sku: 101172765

€1.001,82
€1.001,82
Sale Sold out
Taxes included.

📦 Ready for dispatch: 03.01.2026

SKU: 101172765

  • NOT-HALT-Schalter in Metallausführung Ø 38,5 mm
  • 2 schwarze Bedientasten (Stellteile) Ø 55 mm in Metallausführung
  • Leichtmetall-Druckguss
  • 2-teiliges Gehäuse
  • Stand- und Wandmontage möglich
  • ergonomische Bedienung
  • Klemmleisten- und Relaismontage im Innenteil möglich
  • Bedienfeld zur Aufnahme von mindestens 8 zusätzlichen Melde- und Befehlsgeräten geeignet
  • Bohrungen unter der Abdeckung und Mittelbohrung Ø = 22,3mm
  • Product type description: SEPG05.3.4.0.22/95
  • Article number (order number): 101172765
  • EAN (European Article Number): 4250116202881
  • eCl@ss number, version 12.0: 27-37-12-19
  • eCl@ss number, version 11.0: 27-37-12-19
  • eCl@ss number, version 9.0: 27-37-12-19
  • ETIM number, version 7.0: EC001260
  • ETIM number, version 6.0: EC001260
  • Certificates: cULus
  • Standards: EN ISO 13850, EN ISO 13851, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60947-1
  • Enclosure material: Aluminium
  • Enclosure coating material: powder-coated
  • Gross weight: 4,300 g
  • Construction kit possible : Yes
  • Suitable for EMERGENCY-OFF : Yes
  • Number of Emergency Stop button: 1
  • Number of normally closed (NC): 2
  • Number of normally open (NO): 2
  • Number of operating push buttons (positioning parts): 2
  • Mechanical life, minimum: 10,000,000 Operations
  • Termination: Screw terminals M20 x 1.5
  • Cable section, maximum: 1.5 mm²
  • Width: 494 mm
  • Height: 184 mm
  • Depth: 160 mm
  • Length x Width x Height: Operating push buttons (positioning parts): 55 mm, Emergency stop pushbutton: 38.5 mm
  • Degree of protection: IP65
  • Rated insulation voltage Ui: 440 V
  • Thermal test current: 10 A
  • Utilisation category AC-15: 250 VAC
  • Utilisation category AC-15: 8 A
  • Utilisation category DC-13: 24 VDC
  • Utilisation category DC-13: 5 A
  • Recommendation (product combination): SRB201ZH, SRB200ZHX1, SRB 201ZHX3
  • Note (General): Optional: actuators with low actuating force, Central part suitable for fitting of up to 10 additional command devices and indicator lights (Ø 22 mm), 1 NO/1 NC contact per unit, 1 NO/1 NC contact for Emergency-Stop
  • Note (Number of Emergency Stop button): Consisting of: EDRR40RT; EFR; EF303.1
  • Note (Number of operating push buttons (positioning parts)): Consisting of: EDP55SW; EF10.1; EF03.1
