Schmersal

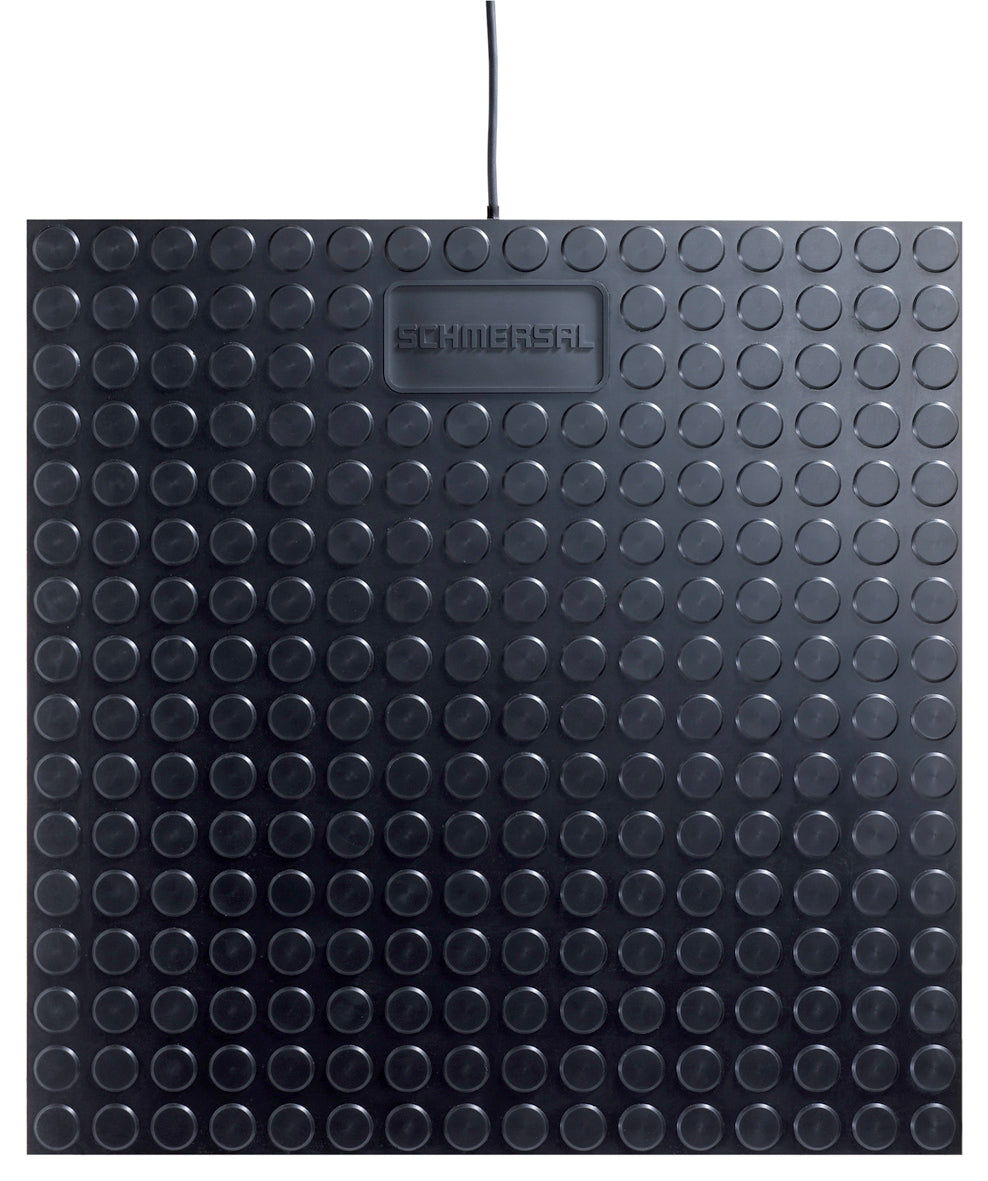

Schmersal SMS 4-1000-1500 Sicherheitsgerichteter taktiler Sensor
Schmersal SMS 4-1000-1500 Sicherheitsgerichteter taktiler Sensor
Regular price
€2.272,11
Regular price
Sale price
€2.272,11
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 02.12.2025
Couldn't load pickup availability
SKU: SKU:101208370
- robuste Ausführung
- modulares Schaltmatten-System
- Sondergrößen auf Anfrage!
- wartungsfrei
- einfache Montage
- rutschfeste Oberfläche
- hohe chemische Beständigkeit
- kein zusätzlicher Abschlusswiderstand
- keine zusätzliche Bodenplatte
- 4 adriger Leitungsanschluss
- Product type description: SMS 4-1000-1500
- Article number (order number): 101208370
- EAN (European Article Number): 4030661380162
- eCl@ss number, version 12.0: 27-27-34-02
- eCl@ss number, version 11.0: 27-27-34-02
- eCl@ss number, version 9.0: 27-27-34-02
- ETIM number, version 7.0: EC002887
- ETIM number, version 6.0: EC002887
- Certificates: TÜV, cULus
- Standards: EN ISO 13849-1, EN ISO 13856-1
- Material of the surface/surface material: Polyurethane PUR
- Shore hardness: 78 ±5 A
- Gross weight: 45,000 g
- Grammage: 25 kg/m2
- Reaction time, maximum: 25 ms
- Maintenance: maintenance free, Annual maintenance is recommended.
- Cascadable: Yes
- Safety classification: Yes
- Performance Level, up to: d
- Category: 3
- Safety Integrity Level (SIL), suitable for applications in: 2
- Mission time: 20 Year(s)
- Note (Category): To max. 52,000 switching cycles/year with max. 60% contact load; deviating applications on request.
- Mechanical life, minimum: 1,000,000 Operations
- Actuating force: 150 N
- Note (Actuating force): With round body Ø 80mm
- Admissable load: 20 N/mm2
- Notice (Admissable load): With round body Ø 80mm
- Inactive border: 16 mm
- Termination: Cable
- Length of cable: 6 m
- Wire cross-section: 0.34 mm2
- Wire cross-section: 22 AWG
- Length: 1,500 mm
- Width: 1,000 mm
- Height: 14 mm
- Degree of protection: IP65
- Ambient temperature: +0 ... +60 °C
- Recommended safety switchgear: SRB 301HC/R,, SRB 301HC/T
- Material resistance (water): resistent
- Material resistance (10% acids): resistent
- Material resistance (10% lyes): resistent
- Material resistance (petrol): resistent
- Material resistance (oil): resistent
