Schmersal

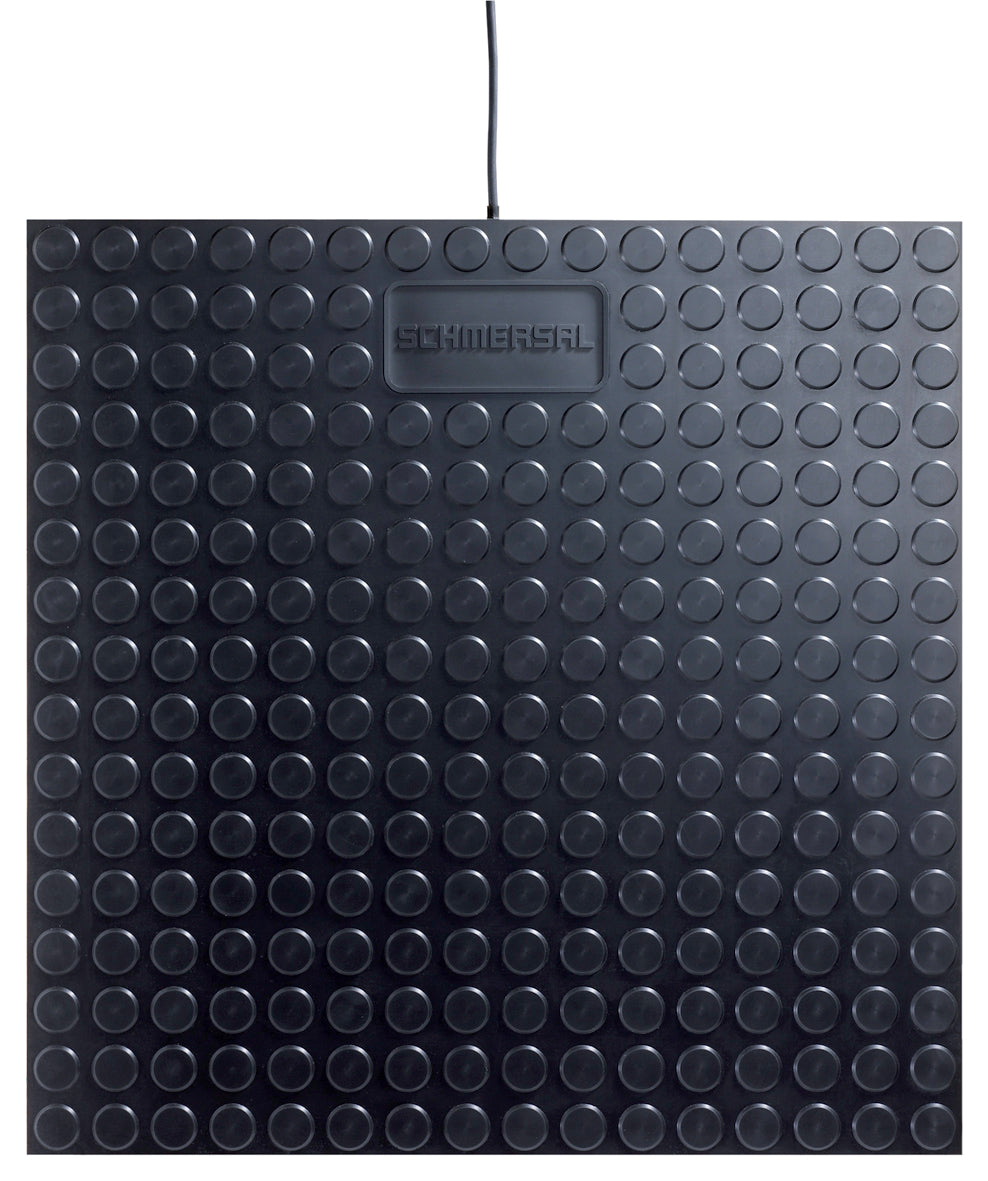

Schmersal SMS 4-250-500 Sicherheitsgerichteter taktiler Sensor, sku: 101208365

Schmersal SMS 4-250-500 Sicherheitsgerichteter taktiler Sensor, sku: 101208365

€434,75
€434,75
Sale Sold out
Taxes included.

📦 Ready for dispatch: 29.12.2025

SKU: 101208365

  • robuste Ausführung
  • modulares Schaltmatten-System
  • Sondergrößen auf Anfrage!
  • wartungsfrei
  • einfache Montage
  • rutschfeste Oberfläche
  • hohe chemische Beständigkeit
  • kein zusätzlicher Abschlusswiderstand
  • keine zusätzliche Bodenplatte
  • 4 adriger Leitungsanschluss
  • Product type description: SMS 4-250-500
  • Article number (order number): 101208365
  • EAN (European Article Number): 4030661380100
  • eCl@ss number, version 12.0: 27-27-34-02
  • eCl@ss number, version 11.0: 27-27-34-02
  • eCl@ss number, version 9.0: 27-27-34-02
  • ETIM number, version 7.0: EC002887
  • ETIM number, version 6.0: EC002887
  • Certificates: TÜV, cULus
  • Standards: EN ISO 13849-1, EN ISO 13856-1
  • Material of the surface/surface material: Polyurethane PUR
  • Shore hardness: 78 ±5 A
  • Grammage: 25 kg/m2
  • Reaction time, maximum: 25 ms
  • Maintenance: maintenance free, Annual maintenance is recommended.
  • Gross weight: 4,825 g
  • Cascadable: Yes
  • Safety classification
  • Performance Level, up to: d
  • Category: 3
  • Safety Integrity Level (SIL), suitable for applications in: 2
  • Mission time: 20 Year(s)
  • Note (Category): To max. 52,000 switching cycles/year with max. 60% contact load; deviating applications on request.
  • Mechanical life, minimum: 1,000,000 Operations
  • Actuating force: 150 N
  • Note (Actuating force): With round body Ø 80mm
  • Inactive border: 16 mm
  • Length of cable: 6 m
  • Termination: Cable
  • Wire cross-section: 0.34 mm2
  • Wire cross-section: 22 AWG
  • Length: 500 mm
  • Width: 250 mm
  • Height: 14 mm
  • Degree of protection: IP65
  • Ambient temperature: +0 ... +55 °C
  • Recommended safety switchgear: SRB 301HC/R,, SRB 301HC/T
  • Material resistance (water): resistent
  • Material resistance (10% acids): resistent
  • Material resistance (10% lyes): resistent
  • Material resistance (petrol): resistent
  • Material resistance (oil): resistent
