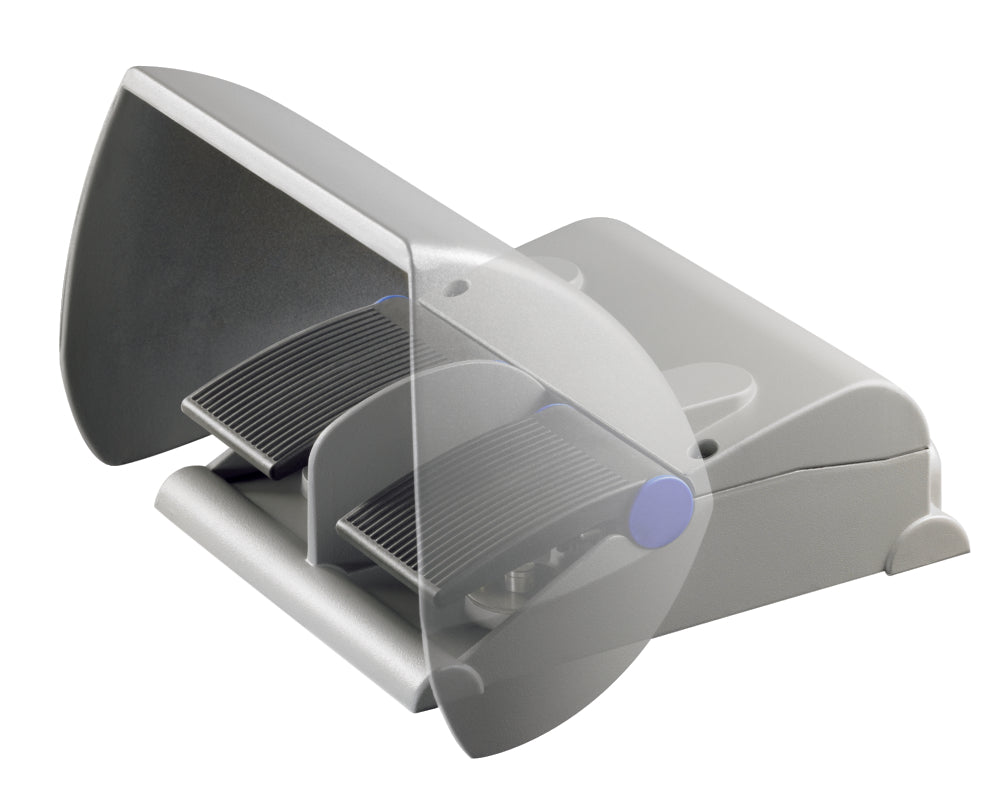

Schmersal T2FH 232-11UEDR/11UEDR Fußschalter, sku: 151216987

Schmersal T2FH 232-11UEDR/11UEDR Fußschalter, sku: 151216987

€612,37
€612,37
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 151216987

  • 2 Kontakte pro Pedal
  • Schutzhaube mit großer Öffnungsweite
  • zweipedalig
  • 2 Leitungseinführungen M25
  • hohe Standfestigkeit
  • Product type description: T2FH 232-11UEDR/11UEDR
  • Article number (order number): 151216987
  • EAN (European Article Number): 4030661529578
  • eCl@ss number, version 12.0: 27-37-12-18
  • eCl@ss number, version 11.0: 27-37-12-18
  • eCl@ss number, version 9.0: 27-37-12-18
  • ETIM number, version 7.0: EC001258
  • ETIM number, version 6.0: EC001258
  • Certificates: cULus, CCC
  • Standards: BG-GS-ET-14, BG-GS-ET-15, DIN VDE 0660-200, EN IEC 60947-5-1
  • Enclosure material: Aluminium
  • Enclosure coating material: powder-coated
  • Material of the housing cover: Aluminium
  • Material of the pedal: Glass-fibre, reinforced thermoplastic
  • Material of the protective shield: Aluminium
  • Gross weight: 3,850 g
  • Latching: Yes
  • Protective shield: Yes
  • Probing possible : Yes
  • Suitable for EMERGENCY-OFF : Yes
  • Number of pedals, NC: 1
  • Number of pedals, NO: 1
  • Safety classification: 1
  • Standards: EN ISO 13849-1
  • Mission time: 20 Year(s)
  • B10D Normally-closed contact (NC): 100,000 Operations
  • Mechanical life, minimum: 1,000,000 Operations
  • Termination: Screw terminals M20 x 1.5
  • Cable section, maximum: 2.5 mm²
  • Note (Cable section): All indications including the conductor ferrules.
  • Width: 295 mm
  • Height: 189 mm
  • Depth: 274 mm
  • Degree of protection: IP65
  • Ambient temperature: -25 ... +60 °C
  • Storage and transport temperature, minimum: -25 °C
  • Storage and transport temperature, maximum: +85 °C
  • Relative humidity, minimum: 30 %
  • Relative humidity, maximum: 95 %
  • Note (Relative humidity): non-condensing, non-icing
  • Resistance to vibrations: 10 … 150 Hz, amplitude 0.35 mm / 5 g
  • Restistance to shock: 30 g / 11 ms
  • Rated insulation voltage Ui: 500 V
  • Rated impulse withstand voltage Uimp: 6 kV
  • Overvoltage category: III
  • Degree of pollution: 3
  • Thermal test current: 10 A
  • Required rated short-circuit current: 1,000 A
  • Utilisation category AC-15: 230 VAC
  • Utilisation category AC-15: 4 A
  • Utilisation category DC-13: 24 VDC
  • Utilisation category DC-13: 1 A
  • Switching element: NO contact, NC contact
  • Switching principle: Slow action with overlapping contacts
  • Switching frequency: 3,600 /h
