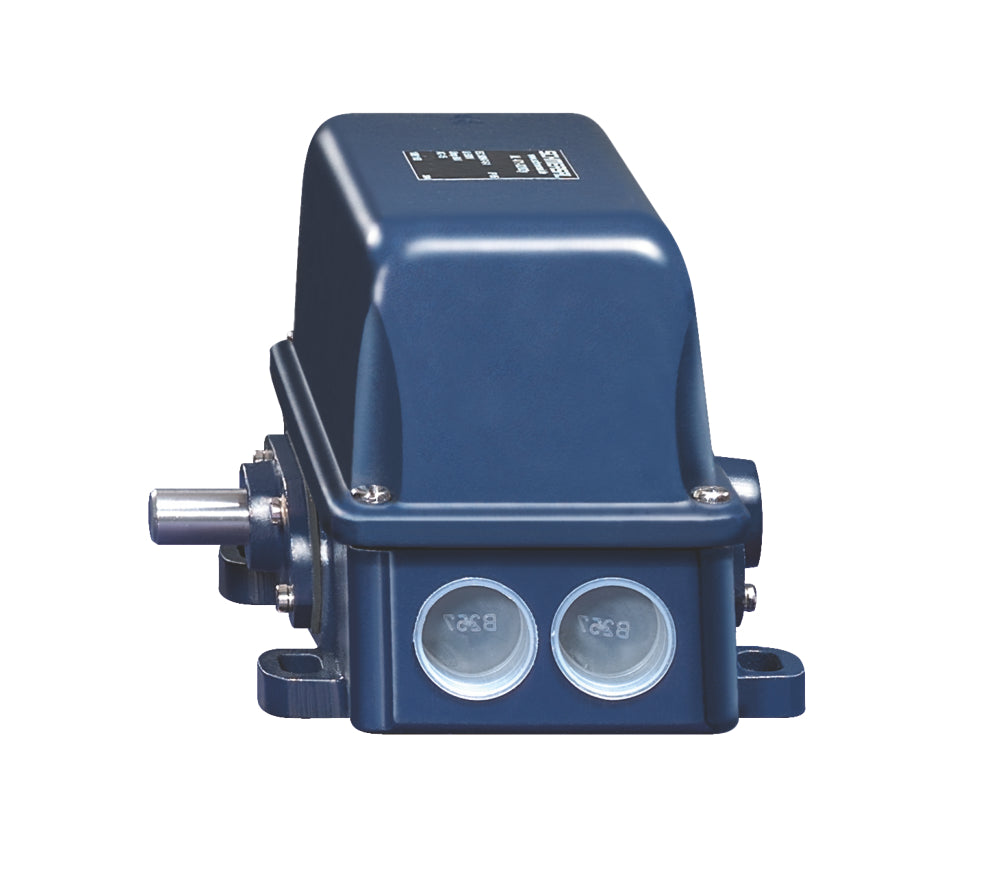

Schmersal TA 471-03/03Y Schwerlast-Positionsschalter, sku: 101061139

Schmersal TA 471-03/03Y Schwerlast-Positionsschalter, sku: 101061139

€978,97
€978,97
Sale Sold out
Taxes included.

📦 Ready for dispatch: 11.01.2026

SKU: 101061139

  • Metallgehäuse
  • 4 oder 6 Kontakte
  • 194 mm x 123 mm x 130 mm (Grundgerät)
  • 3 Leitungseinführungen M 25 x 1.5
  • Betätiger stufenlos um 360º einstellbar
  • Product type description: TA 471-03/03Y
  • Article number (order number): 101061139
  • EAN (European Article Number): 4030661058313
  • eCl@ss number, version 12.0: 27-27-06-01
  • eCl@ss number, version 11.0: 27-27-06-01
  • eCl@ss number, version 9.0: 27-27-06-01
  • ETIM number, version 7.0: EC000030
  • ETIM number, version 6.0: EC000030
  • Certificates: cULus, CCC
  • Standards: EN IEC 60947-5-1
  • Working principle: mechanical
  • Slide form: Castor
  • Enclosure material: Grey cast iron, galvanised
  • Enclosure coating material: painted
  • Gross weight: 4,465 g
  • Number of NC, left: 3
  • Number of NC, right: 3
  • B10D Normally-closed contact (NC): 2,000,000 Operations
  • Actuating element: Roller lever
  • Roller material: Plastic
  • Mechanical life, minimum: 1,000,000 Operations
  • Actuating angle, from left of switch axis: 30 °
  • Actuating angle, from right of switch axis: 30 °
  • Contact opening: 2 x 4 mm
  • Actuation direction: Each time 75° right-hand side and left-hand side rotation
  • Actuating speed, minimum: 0.1 mm/min
  • Actuating speed, maximum: 3 m/s
  • Note (Actuating speed): Actuating speed with vertical actuating angle to switch axis
  • Termination: Screw terminals M20 x 1.5
  • Cable section, minimum: 1.5 mm²
  • Cable section, maximum: 4 mm²
  • Note (Cable section): All indications including the conductor ferrules.
  • Wire cross-section: 11 AWG
  • Length of sensor: 190 mm
  • Width of sensor: 194 mm
  • Height of sensor: 143 mm
  • Width of Castor: 9 mm
  • Diameter of Castor: 36 mm
  • Degree of protection: IP65
  • Ambient temperature: -30 ... +90 °C
  • Rated insulation voltage Ui: 500 V
  • Rated impulse withstand voltage Uimp: 6 kV
  • Thermal test current: 25 A
  • Utilisation category AC-15: 230 VAC
  • Utilisation category AC-15: 10 A
  • Switching element: Opener (NC)
  • Note (Switching element): with double break
  • Switching principle: Slow action
  • Switching frequency: 1,000 /h
  • Material of the contacts, electrical: Silver
