Schmersal

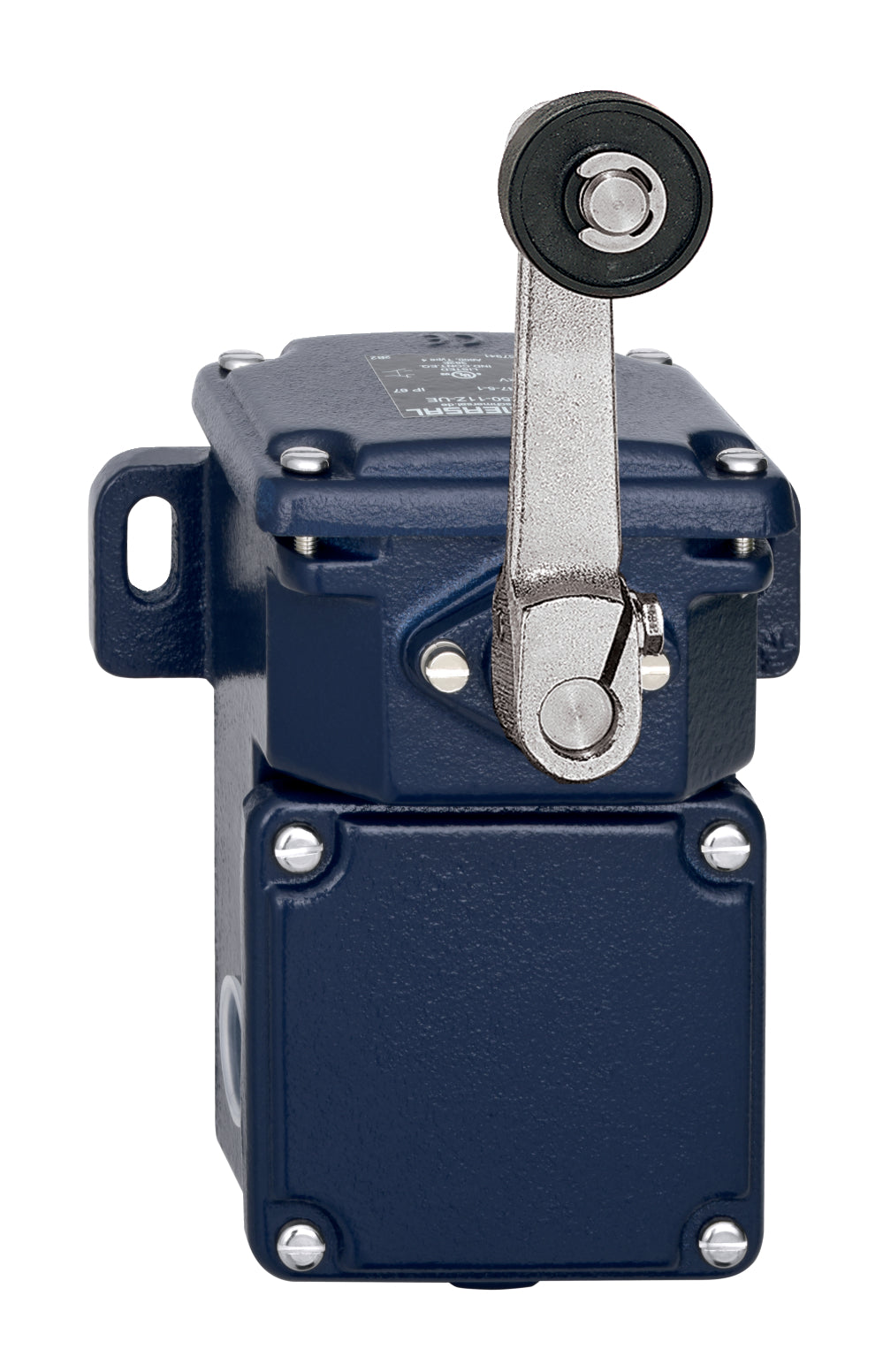

Schmersal TD 250-02/02Z Positionsschalter, sku: 101058179

Schmersal TD 250-02/02Z Positionsschalter, sku: 101058179

€614,91
€614,91
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 101058179

  • 4 Kontakte
  • Metallgehäuse
  • Product type description: TD 250-02/02Z
  • Article number (order number): 101058179
  • EAN (European Article Number): 4030661031200
  • eCl@ss number, version 12.0: 27-27-06-01
  • eCl@ss number, version 11.0: 27-27-06-01
  • eCl@ss number, version 9.0: 27-27-06-01
  • ETIM number, version 7.0: EC000030
  • ETIM number, version 6.0: EC000030
  • Certificates: cULus, CCC
  • Standards: EN IEC 60947-5-1
  • Terminal (mechanical): Screw connection
  • Enclosure material: Grey cast iron, galvanised
  • Enclosure coating material: painted
  • Gross weight: 4,383 g
  • Number of normally closed (NC): 4
  • B10D Normally-closed contact (NC): 2,000,000 Operations
  • Mechanical life, minimum: 10,000,000 Operations
  • Impact energy, maximum: 7 J
  • Actuating speed, maximum: 1 m/s
  • Cable entry: 2 x M25 x 1.5
  • Cable section, maximum: 2.5 mm²
  • Note (Cable section): All indications including the conductor ferrules.
  • Degree of protection: IP65, IP67, IP66
  • Ambient temperature: -20 ... +60 °C
  • Material temperature resistance (short-term), maximum: +90 °C
  • Rated impulse withstand voltage Uimp: 6 kV
  • Thermal test current: 16 A
  • Required rated short-circuit current: 1,000 A
  • Switching principle: Slow action
  • Bounce duration, maximum: 5 ms
  • Switching frequency: 3,000 /h
  • Switchover time, maximum: 35 ms
  • Material of the contacts, electrical: Gold-plated silver (AgNi 15 + Au 0,3µm)
  • Voltage, Utilisation category AC-15: 400 VAC
  • Current, Utilisation category AC-15: 4 A
