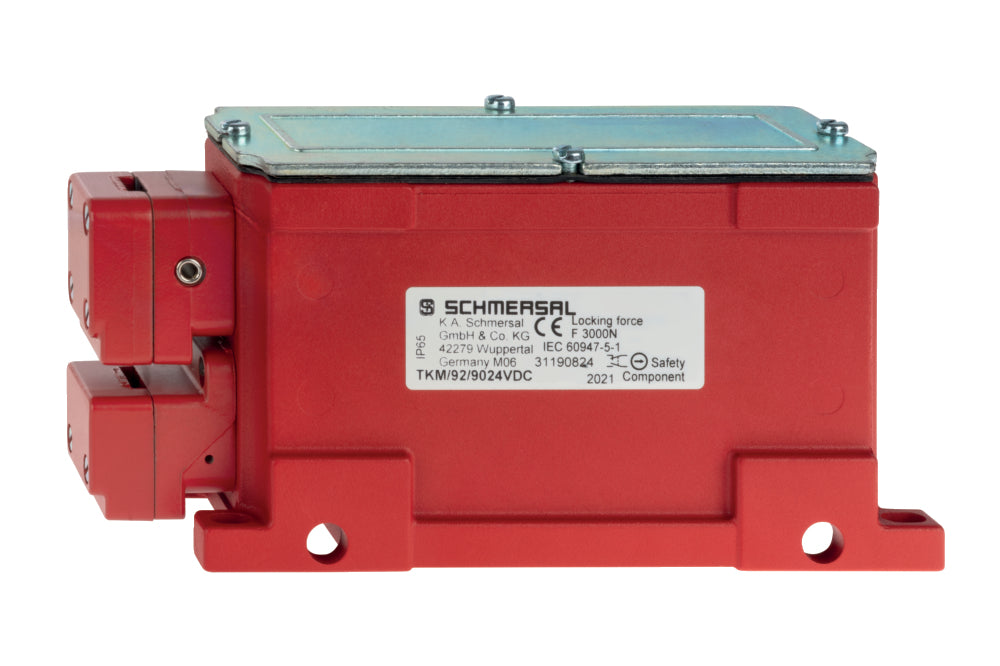

Schmersal TKM/92/9024VDC Sicherheitszuhaltungen, sku: 101030160

Schmersal TKM/92/9024VDC Sicherheitszuhaltungen, sku: 101030160

€693,37
€693,37
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 101030160

  • Metallgehäuse
  • hohe Zuhaltekraft
  • Product type description: TKM/92/9024VDC
  • Article number (order number): 101030160
  • EAN (European Article Number): 4030661450995
  • eCl@ss number, version 12.0: 27-27-26-03
  • eCl@ss number, version 11.0: 27-27-26-03
  • eCl@ss number, version 9.0: 27-27-26-03
  • ETIM number, version 7.0: EC002593
  • ETIM number, version 6.0: EC002593
  • Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
  • Coding level according to EN ISO 14119: Low
  • Working principle: electromechanical
  • Enclosure material: Aluminium
  • Gross weight: 1,452 g
  • Number of actuating directions: 3
  • Number of auxiliary contacts: 2
  • Number of safety contacts: 2
  • Safety classification: 2
  • Standards: EN ISO 13849-1
  • Mission time: 20 Year(s)
  • B10D Normally-closed contact (NC): 2,000,000 Operations
  • B10D Normally open contact (NO): 1,000,000 Operations
  • Mechanical life, minimum: 2,000,000 Operations
  • Holding force FZh in accordance with EN ISO 14119: 3,000 N
  • Holding force Fmax, maximum: 4,000 N
  • Latching force: 20 N
  • Positive break force, minimum: 20 N
  • Actuating speed, maximum: 0.3 m/s
  • Termination: Screw terminals
  • Cable section, minimum: 0.25 mm²
  • Cable section, maximum: 2.5 mm²
  • Note (Cable section): All indications including the conductor ferrules.
  • Length of sensor: 50 mm
  • Width of sensor: 87 mm
  • Height of sensor: 192 mm
  • Degree of protection: IP67
  • Ambient temperature: +0 ... +50 °C
  • Permissible installation altitude above sea level, maximum: 2,000 m
  • Rated insulation voltage Ui: 400 V
  • Rated impulse withstand voltage Uimp: 2.5 kV
  • Thermal test current: 10 A
  • Rated control voltage: 24 VAC/DC
  • Electrical power consumption, maximum: 10 W
  • Switching principle: Snap action
  • Switching frequency: 1,000 /h
  • Material of the contacts, electrical: Silver
  • Magnet switch-on time: 100 %
  • Test pulse duration, maximum: 5 ms
  • Test pulse interval, minimum: 50 ms
  • Voltage, Utilisation category AC-15: 230 VAC
  • Current, Utilisation category AC-15: 8 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 5 A
  • Voltage, Utilisation category AC-15: 230 VAC
  • Current, Utilisation category AC-15: 8 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 5 A
  • Scope of delivery: Actuator must be ordered separately.
