Schmersal

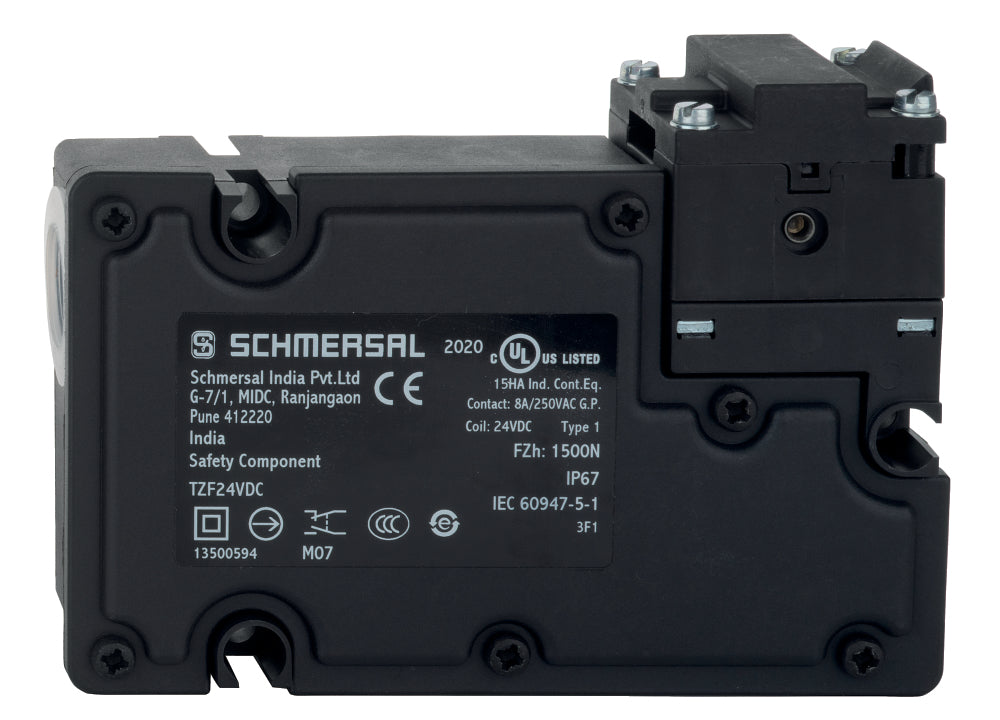

Schmersal TZFWN24VDC/BU Magnetverriegelung, sku: 131028610

Schmersal TZFWN24VDC/BU Magnetverriegelung, sku: 131028610

€445,93
€445,93
Sale Sold out
Taxes included.

📦 Ready for dispatch: 02.12.2025

SKU: 131028610

  • Kunststoffgehäuse
  • Zuhaltekraft 1500 N
  • Product type description: TZFWN24VDC/BU
  • Article number (order number): 131028610
  • EAN (European Article Number): 8905236105876
  • eCl@ss number, version 12.0: 27-27-26-03
  • eCl@ss number, version 11.0: 27-27-26-03
  • eCl@ss number, version 9.0: 27-27-26-03
  • ETIM number, version 7.0: EC002593
  • ETIM number, version 6.0: EC002593
  • Standards: BG-GS-ET-19, EN IEC 60947-5-1
  • Coding level according to EN ISO 14119: Low
  • Working principle: electromechanical
  • Enclosure material: Glass-fibre, reinforced thermoplastic
  • Gross weight: 1,066 g
  • Number of actuating directions: 4
  • Number of safety contacts: 2
  • Safety classification: 2
  • Standards: EN ISO 13849-1
  • Mission time: 20 Year(s)
  • B10D Normally-closed contact (NC): 2,000,000 Operations
  • B10D Normally open contact (NO): 1,000,000 Operations
  • Mechanical life, minimum: 1,000,000 Operations
  • Holding force FZh in accordance with EN ISO 14119: 1,500 N
  • Latching force: 20 N
  • Positive break travel: 3.5 mm
  • Positive break force, minimum: 20 N
  • Actuating speed, maximum: 0.3 m/s
  • Termination: Screw terminals
  • Cable section, minimum: 1 x 0.5 mm²
  • Cable section, maximum: 1 x 1.5 mm²
  • Note (Cable section): All indications including the conductor ferrules.
  • Length of sensor: 41 mm
  • Width of sensor: 129 mm
  • Height of sensor: 92.5 mm
  • Degree of protection: IP65, IP67
  • Ambient temperature: +0 ... +50 °C
  • Rated insulation voltage Ui: 250 VAC
  • Rated impulse withstand voltage Uimp: 2.5 kV
  • Thermal test current: 4 A
  • Rated control voltage: 24 VDC
  • Required rated short-circuit current: 1,000 A
  • Electrical power consumption, maximum: 8.5 W
  • Switching principle: Slow action
  • Material of the contacts, electrical: Silver
  • Voltage, Utilisation category AC-15: 230 VAC
  • Current, Utilisation category AC-15: 4 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 4 A
  • Voltage, Utilisation category AC-15: 230 VAC
  • Current, Utilisation category AC-15: 4 A
  • Voltage, Utilisation category DC-13: 24 VDC
  • Current, Utilisation category DC-13: 4 A
  • Note (applications): sliding safety guard, removable guard, hinged safety guard
  • Scope of delivery: The actuator TZ/CO is included in delivery.
