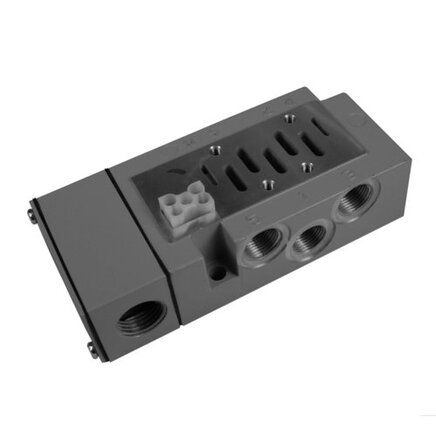

Aventics 2622601010, VALVE PLATE V262-2-S-G1/2-P

Standards and Regulations: ISO 5599-2
Flow L/M: 3000 l/min
DC operating voltage: 24 V
Operational voltage AC at 60 Hz: 110 V
Compressed air connection type: Internal thread
Compressed air connection input: G 1/2
Compressed air connection output: G 1/2
Max Working Pressure: 10 bar
Housing: Die-cast aluminum
Sealing Material: Aluminum
Number of valve positions: 1
Color: Silver gray
Min to Max Ambient temperature: -10 °C - 50 °C
Connection exhaust: G 1/2
Working pressure min.: -.95 bar
