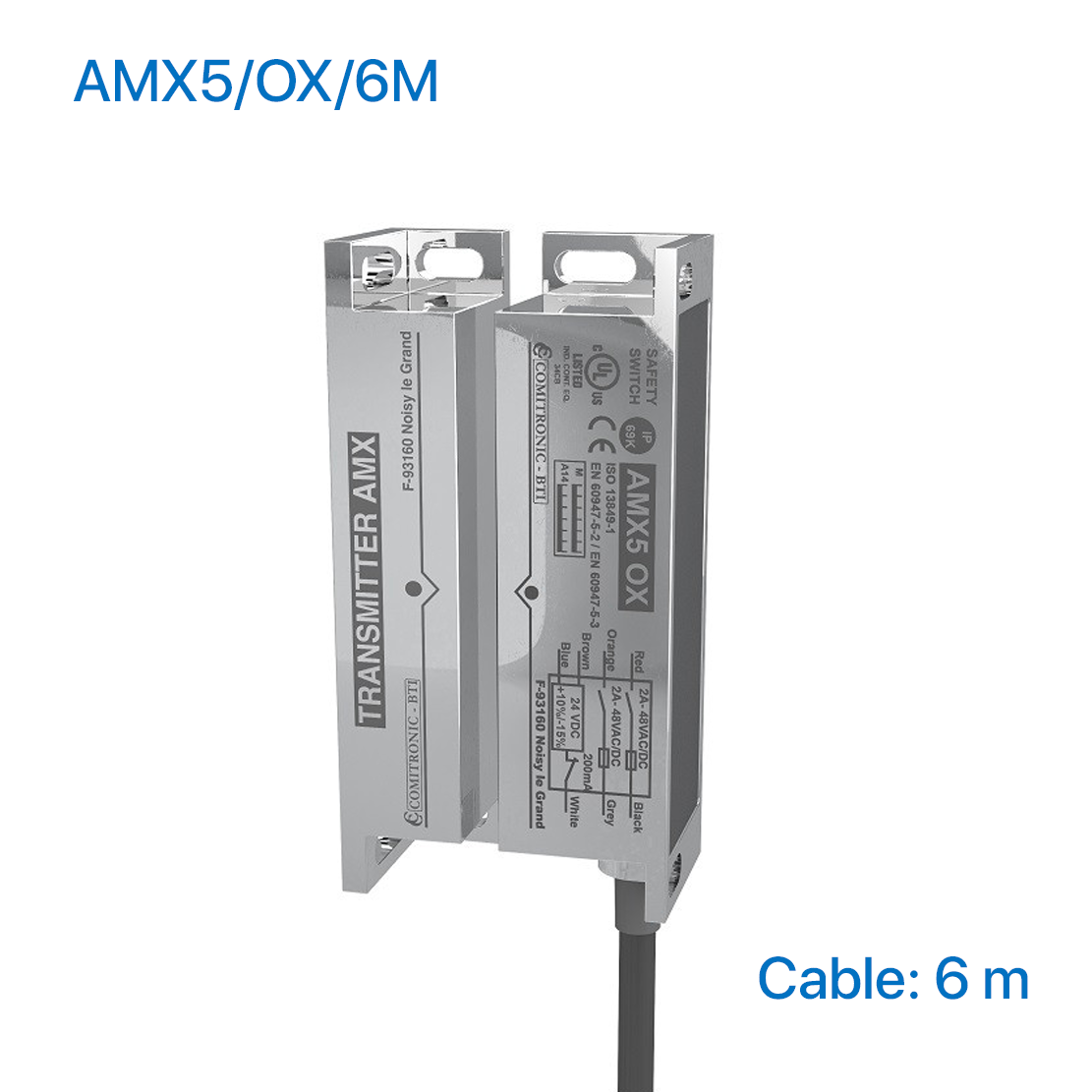

The AMX Safety Switch Stand Alone is a device that controls the position of hazardous machine doors/cases. It features a contactless coded sensor with electronic technology and relays, and has an IP68 PA6 / IP69K INOX316L rating. This device has a performance level and category without an external controller of Cat 3 PL=d according to ISO 13849-1, and with an AWAX controller, it can reach up to Cat 4 and PL=e. It also has an integrated safety level of SIL 2 according to IEC 61508.

ADVANTAGES

• Controls the opening of doors and movable guards on dangerous machines

• Finger protection thanks to a limited gap <14 mm

• Flush-mounted product, concealable behind a 6 mm aluminum/stainless steel wall

• Direct control of dangerous movement with 2 NO safety contacts and one NC auxiliary output

• 1 NC diagnostic output, independent of the number of sensors in sequence

• LED indication: yellow = active, off = inactive, independent of the number of sensors

• Water resistance: IP 68

CHARACTERISTICS

Power supply IEC 60204-1 : PELV/SELV: 24 VAC -15% / +10% 50/60Hz, 24 VDC -15% / +10%

Operating current: 50 mA (DC) / 115 mA (AC)

Protection

Class: Protection II, Pollution 3

Room temperature: -25°C to +60°C (-13° to +140° F)

Water tightness: IP 68

Vibration resistance: 10~55 Hz, 1.5 mm double amplitude

Shock resistance: 10 g

Frequency switching: < 2 Hz

Response time: < 400 ms (Ton)

Risk period: <15 ms (Toff)

Safety line (5 VDC/10 mA minimum): AC1-AC15-DC13 : 50 VAC / DC / 2 A

Auxiliary output NC: 24 V / 250 mA

Diagnostic output: External protection

Internal protection: 250 mA fuse
