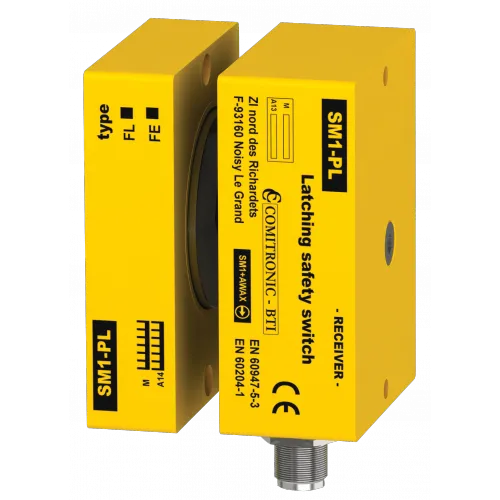

Comitronic-BTI Sm1-Pl-R-Ox-Fl Supermagnet Sm1 - electromagnetic locking

Elektromagnetische Sicherheitsverriegelung mit Haltekraft von 300N bis circa 500N

• Level of performance with AWAX controller: up to PL = e
• Safety category: up to 4 with AWAX controller or PLC SIL 3
• Time before dangerous failure: MTTFd = 100 years
• Maximum detection activation distance: 2 mm
• Holding force: up to 580 N
• Safety contacts/diagnostics: 2 x NO 250mA max/24V redundant and
• 1 x PNP 250mA
• Detection encoding: mono-code inviolable
• Indicator: LED
• Reset: automatic or controlled (ref. + OP)
• Attachment: 4 M4 screws (inviolable on new generation and optional ref.: BH4)
• Mounting position: 1
• Casing material: INOX316L mirror polished (OX version) or POLYCARBONATE (PL version)
• Suction cup material: INOX (SM1 + OX) or steel (SM1 + PL-AC)
• Electrical connection: the M12 metal base will be replaced with a 50cm PUR cord with an M12 connector on the new generation
• Water resistance: IP 67/68 (OX version) / IP55 (Steel version)
• Temperature: -25°C to +50°C.
• Marking: laser engraving with mechanically punched serial number for permanent traceability (OX version) or screen printed serial number for traceability (PL version)
