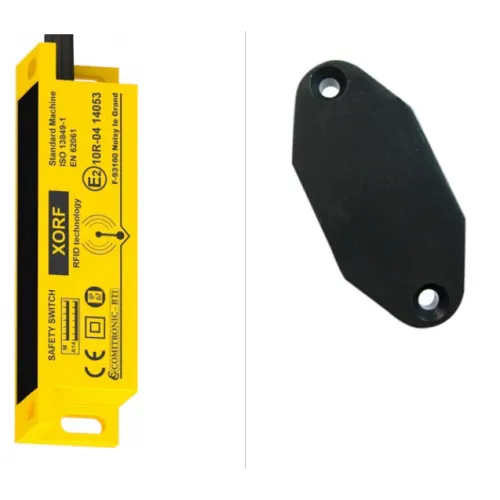

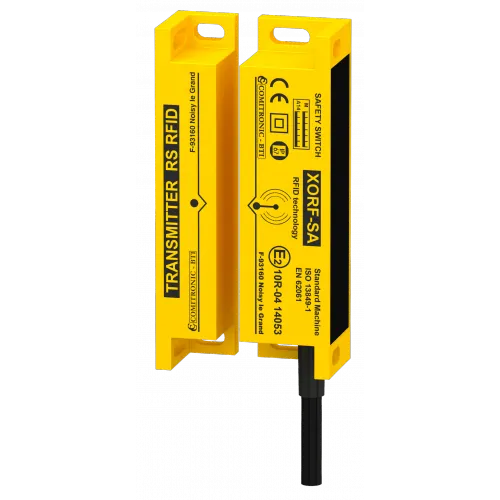

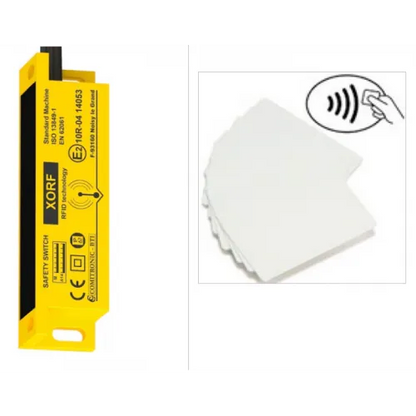

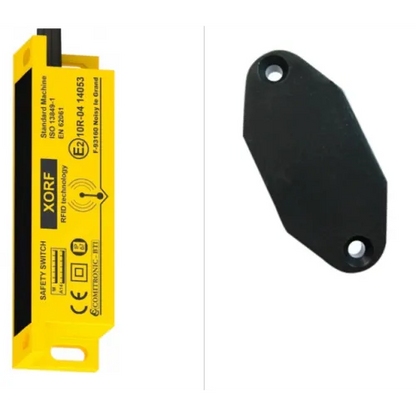

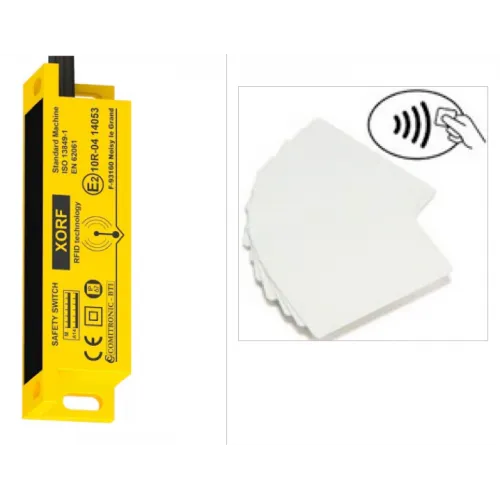

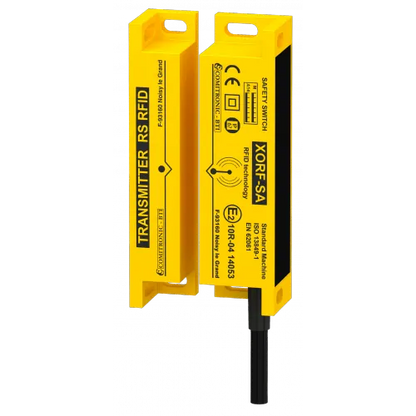

Comitronic-BTI Xorf-Sa/Mkt Xorf-Sa-non-autonomous safety switch with rfid coding
Comitronic-BTI Xorf-Sa/Mkt Xorf-Sa-non-autonomous safety switch with rfid coding
Regular price
€119,75
Regular price
Sale price
€119,75
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 04.12.2025
Couldn't load pickup availability
SKU: SKU:XORF-SA/MKT
Controls the position of security doors with RFID encoding for wheeled vehicles RFID sensor with 16 million codes Suitable for metallic environments Programmable code through auto-learning (no software or PC) Level of performance with AWAX controller: up to PL = e Safety category: up to 4 (EN 954-1) with AWAX controller Time to dangerous failure: MTTFd = 40 years.
| Max activation distance | up to 24 mm |
| Security contact/diagnostics | 2 x redundant NO 50mA/30V and 1 x 50mA auxiliary PNP |
| Detection encoding | inviolable multicode |
| Indicator< | LED indicates code recognition |
| Reset | automatic |
| Attachment | 4 tamper-proof M4 screws (in base option: BH4) |
| Mounting position | 2 (double wall brackets) |
| Material | PA6 |
| Electrical Connection | 50cm PUR cable with M12 connector |
| Sealing | IP 68 |
| Standing room temperature | -30 °C to +50 °C. |
| Storage temperature | -40 °C to +85 °C |
| Marking | pad printing + serial number for traceability |
| Certificate | E2 10R-04 14053 (UTAC) |
| ISO 7637-2 | (Pulse 1, 2a, 2b, 3a, 3b, 4) |
