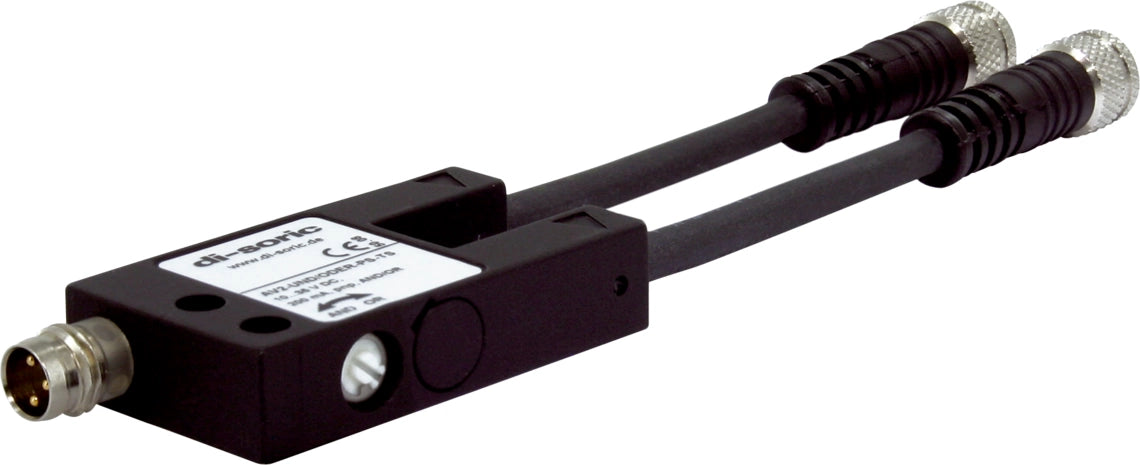

DI-Soric AV2-UND/ODER-PS-TS Signal preparation

Logic distributors can logically link several sensors together and feature a switchable AND/OR switching function. With their high protection class they can be easily retrofitted and exhibit a large range of temperatures in which they can be used.

• Suitable for all standard sensors
• Switching function AND/OR switchable
• Compact design
• Can be retrofitted quickly and easily
• High temperature use range
• High protection type

Service voltage	10 … 35 V DC
No-load current (max.)	14 mA
Housing material	Die-cast zinc (Black, painted)
Protection class	III, operation on protective low voltage
Evaluation	AND/OR
Switching output	pnp, 200 mA, AND/OR
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin
Connection 2	Pigtail, Socket, M8, 3-pin (2x)
