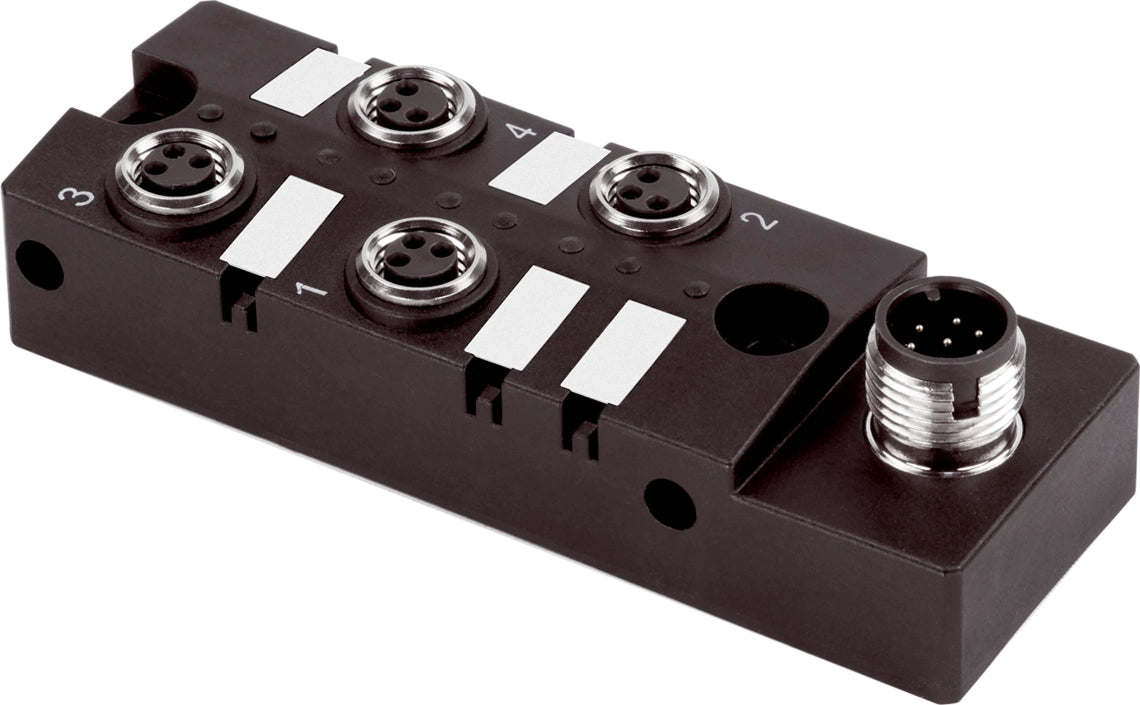

DI-Soric AV4-UND/ODER Signal preparation

Logic distributors can logically link several sensors together and feature a switchable AND/OR switching function. With their high protection class they can be easily retrofitted and exhibit a large range of temperatures in which they can be used.

• Integrated switching function with quadruple AND/OR logic
• 4 sensor inputs, M8/3-pin
• 1 output, M12/8-pin
• 4 LEDs for switching status display
• Robust housing
• High protection type IP 67

Current-carrying capacity	300 mA (per logical contact)
Service voltage	10 … 30 V DC
Housing material	Plastic (Viton)
Protection class	III, operation on protective low voltage
Evaluation	AND/OR
Switching output	pnp (4x), pnp-OR 1x, pnp-AND 1x
Display	LED green - Operating display, yellow - Switching status
Ambient temperature during operation	-30 … +80 °C
Protection type	IP 67 (at tightening torque 0.4 Nm)
Connection	Connector, M12, 8-pin
Connection 2	Socket, M8, 3-pin (4x)
