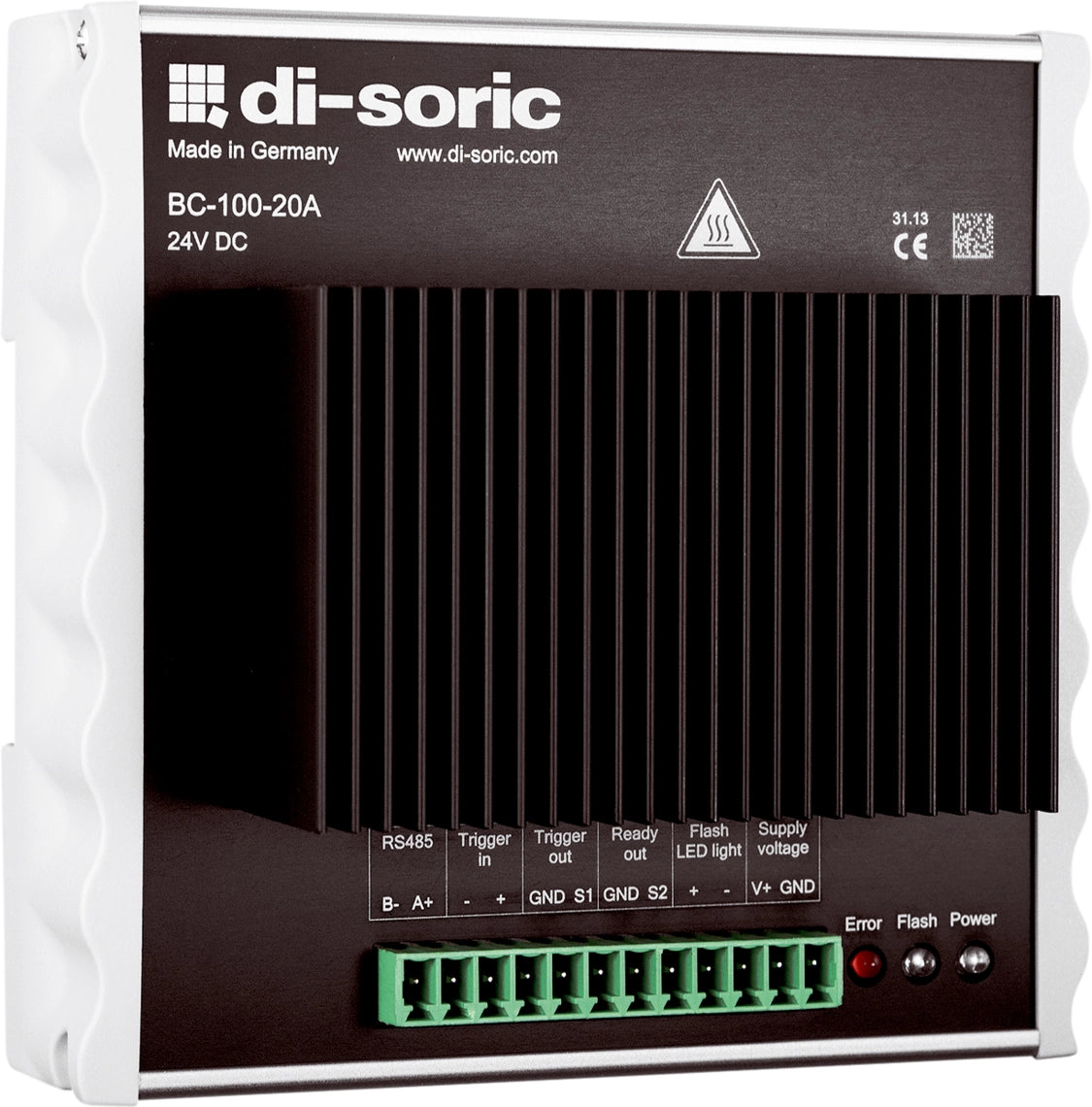

DI-Soric BC-100-20A Accessories for image processing & identification

In the area of electrical accessories, we offer flash controllers and 4-way distributors with individually switchable M12 sockets for our image processing lights.

• Controlled flash mode for LED lights
• Simple and fast setup with RS485/USB/PC
• Trigger input for external control
• Adjustable trigger delay
• Max. pulse current 20 A
• Pulse times can be adjusted between 10 µs and 50 ms
• Strobe function up to 10 kHz
• Constant current of up to 1.8 A
• Standby output
• Trigger output for camera systems and peripheral devices

Service voltage	24 V DC (± 1V)
Inverse polarity protection	In pairs by terminal group
Short-circuit protection	In pairs by terminal group
Average / peak power consumption	< 2.5 A / 6.0 A
LED constant current (configurable)	0.1 … 1.8 A
LED pulse current (configurable)	0.1 … 20.0 A
Input power	< 55 W (24 V DC)
Housing material	Aluminum (Anodized) / Plastic (PA, 6.6 FR)
Protection class	III, operation on protective low voltage
Component	Flash controller for flashable lighting
Number of channels	1
Trigger input	5 … 24 V DC (Potential-free, optical coupler)
Interface	RS485
Trigger output	push-pull, pnp (12 V DC), npn (30 V DC), configurable, <150 mA
Display	LED green - Operation, yellow - Flash, Red - Interference
Pulse duration (configurable)	0.01 … 50 ms
Pulse cycle time (configurable)	100 µs … 60 s
Pulse delay (configurable)	> 50 µs (0 … 2 A) / > 5 µs (2 … 20 A)
Shock/vibration load	30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation	0 … +40 °C
Protection type	IP 40
Connection	Terminal strip, 12-pin
