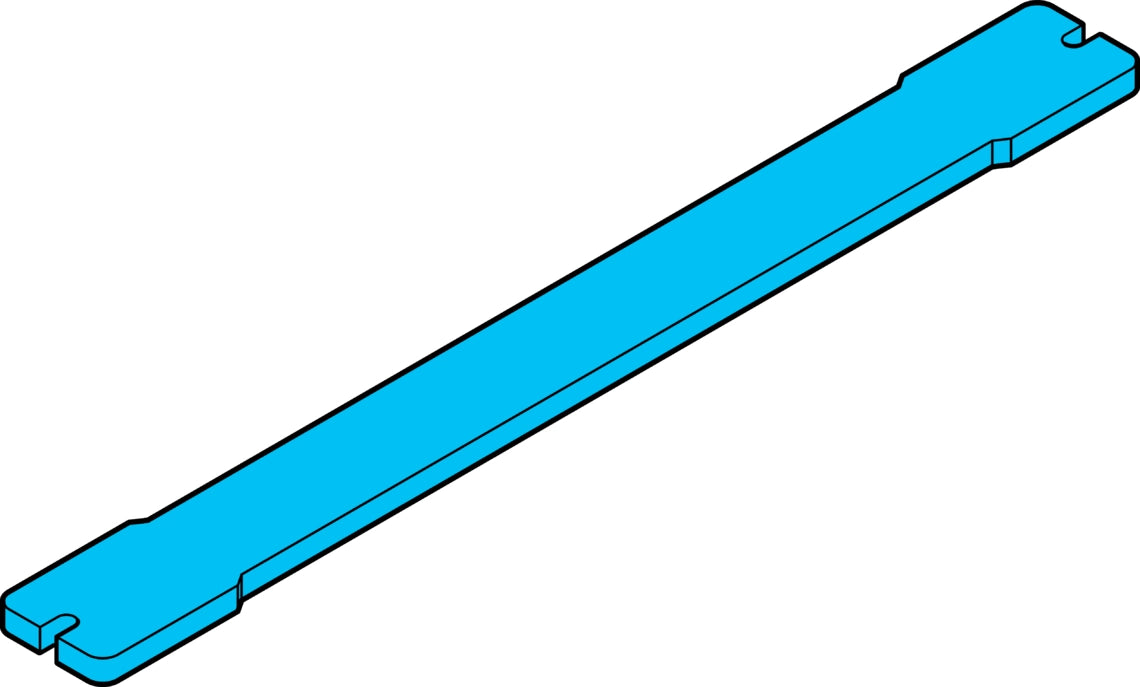

DI-Soric BE-A130-LTK Accessories for image processing & identification

In the area of optical accessories, we offer viewing panes with special optical functions for our image processing lights.

• Lenticular protective cover
• Easily exchanged

Assembly	Using fixing screws
Housing dimensions	14.5 x 3 x 139 mm
Housing length	139 mm
Housing height	3 mm
Housing width	14.5 mm
Light aperture	Direct
Housing material	Plastic (PC)
Structure	PC base material laminated on with 3M 467 lenticular film
Weight	12 g
Component	Safety screen
Characteristics	Film structure parallel to narrow side
To be used for	Barlights BE-A130 ...
Scope of delivery	1 safety screen, Fixing material
Transmission	79 %
Ambient temperature during operation	0 … +40 °C
