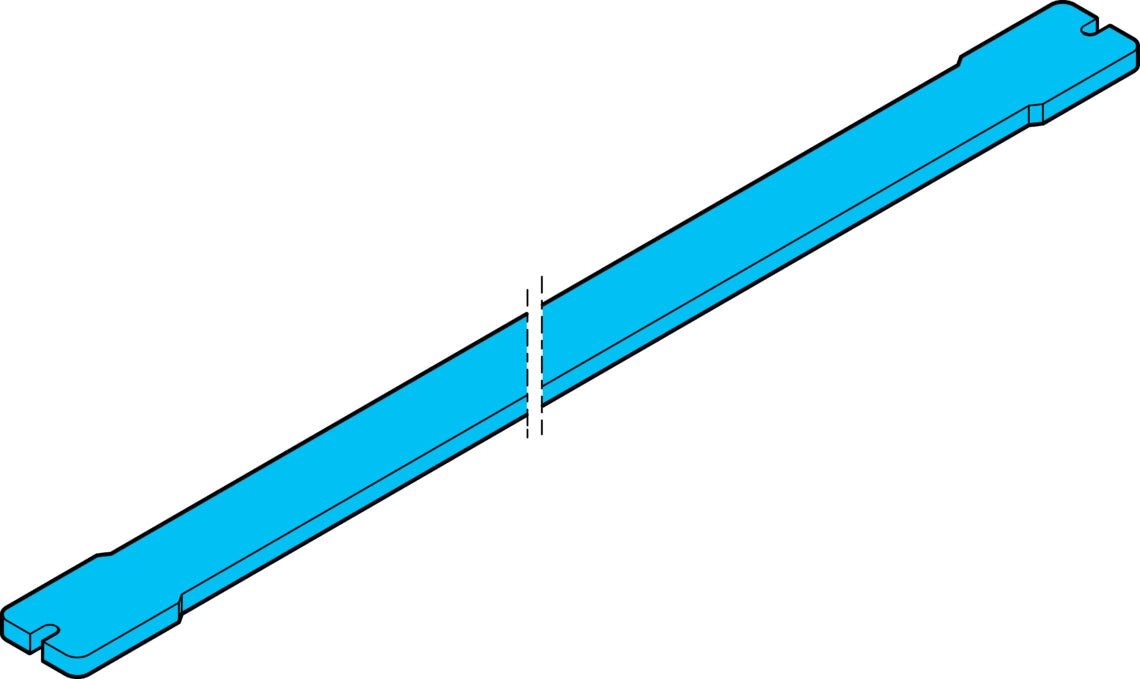

DI-Soric BE-A240-POL Accessories for image processing & identification

In the area of optical accessories, we offer viewing panes with special optical functions for our image processing lights.

• Polarized protective cover
• Easily exchanged

Assembly	Using fixing screws
Housing dimensions	14.5 x 3 x 249 mm
Housing length	249 mm
Housing height	3 mm
Housing width	14.5 mm
Light aperture	Direct
Housing material	Plastic (PMMA)
Structure	PMMA base material of polarization filter laminated on with an optically clear, strapless acrylate adhesive
Weight	20 g
Component	Safety screen
Characteristics	Polarization direction is parallel to the long side
To be used for	Barlights BE-A240 ...
Operating modes	With a pulse / pause ratio of the light colors white / blue over 75%, full guarantee only with external cooling.
Scope of delivery	1 safety screen, Fixing material
Transmission	40 %
Ambient temperature during operation	0 … +40 °C
