DI-Soric BE-R-MOUNTINGSET Accessories for image processing & identification

In the area of mechanical accessories, we offer high-quality brackets for industrially-suited assembly.

• For connecting two lights of adjacent sizes to form a unit
• Can be retrofitted quickly and easily
• Easy to install
• Robust design
• With two mounting sets, all three sizes can even be connected to one unit

Hole spacing	25 mm
Mounting	2 holes
Housing dimensions	35 x 10 x 2 mm
Housing material	Aluminum (Anodized)
Material	Stainless steel V2A (1.4301 / AISI 304, Screw)
Component	Mounting set
To be used for	Ringlights BE-R30..., Ringlights BE-R70...

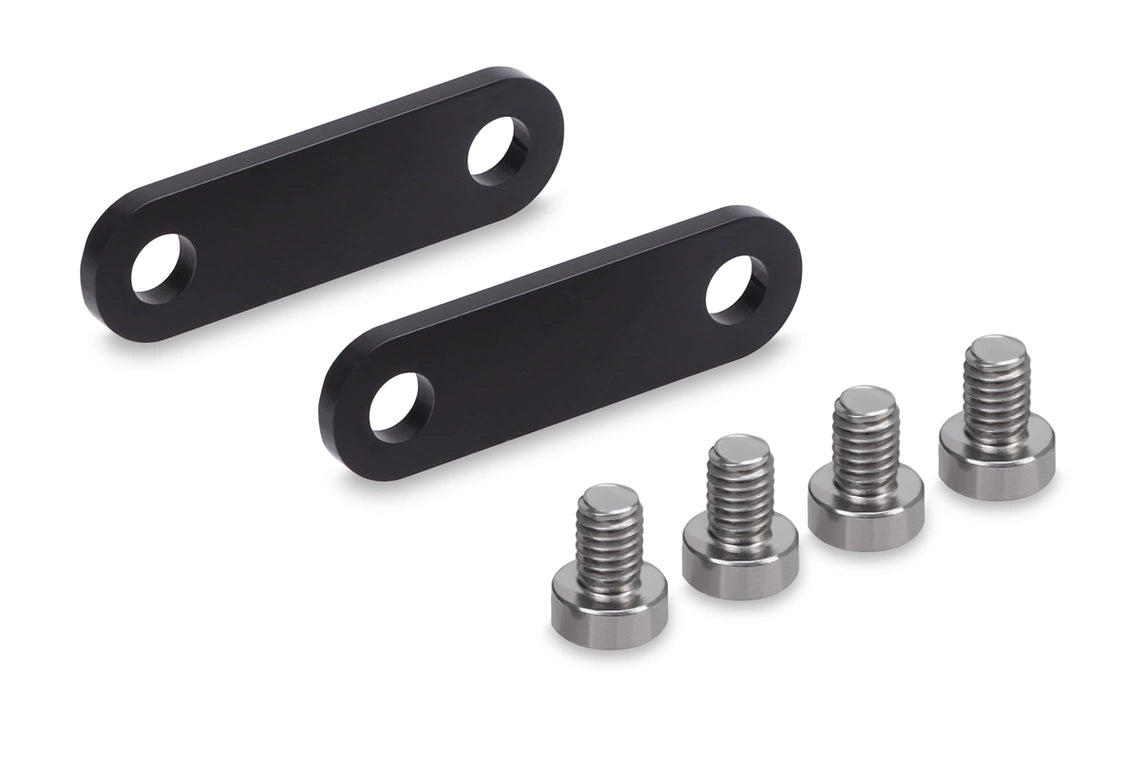

Scope of delivery	2 connecting elements, 4 cylinder head screws M4x6
