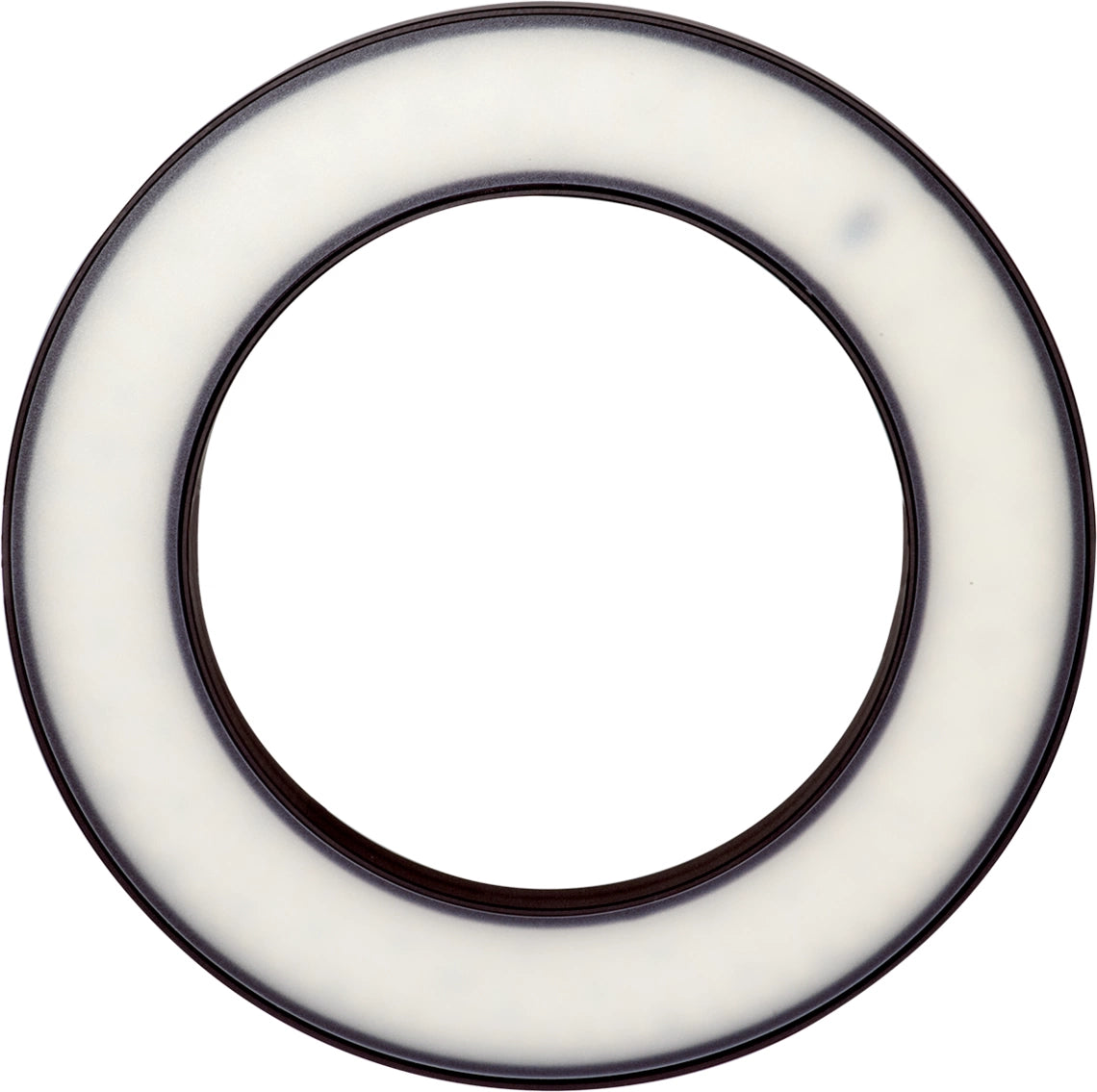

DI-Soric BE-R130-F1-K-DIF Externally flashable ringlight

Externally flashable ringlights are suited for operation using a constant current source or a flash controller. They are the ideal solution for very short camera exposure times and therefore for extremely high-speed processes.

• High excess current factor
• Pulsed mode for inspection of fast moving objects
• Extremely powerful light for high depth of field
• Long life thanks to intelligent thermal management
• Homogeneous luminous field
• High protection type IP 67
• Robust metal housing

Power consumption (in pulse / max.)	230 W
Energization factor (in pulse / max.)	8
Energization (in pulse / max.)	12000 mA
Service voltage	No constant voltage!
Inverse polarity protection	Yes
Insulation voltage endurance	500 V
Diameter	Ø 131 / Ø 200 mm (Diameter)
Height	20 mm
Housing material	Aluminum (Black, Anodized)
Risk group (DIN EN 62471)	Free group
Approvals	UL
Design	Ringlight
Light source	LED
Color	Red (diffuse)
Wavelength	633 nm
Deflection angle FWHM	30°
Control	Flashable by means of flash controller
Shock/vibration load	30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation	0 … +40 °C
Protection type	IP 67
Connection	Cable, 2.5 m (flying leads, Use only with flash controller!)
