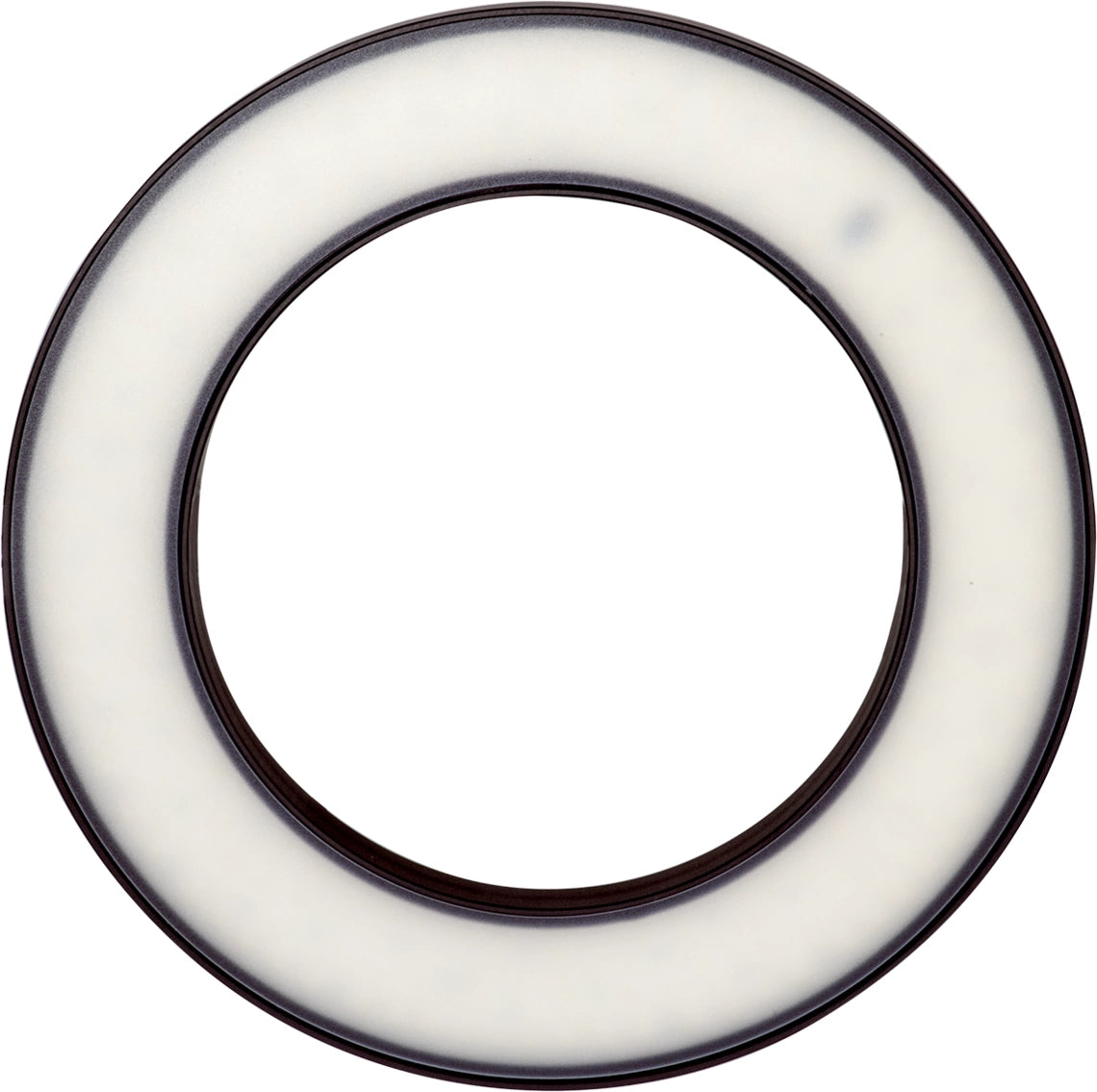

DI-Soric BE-R130-F5-K-DIF Externally flashable ringlight

Externally flashable ringlights are suited for operation using a constant current source or a flash controller. They are the ideal solution for very short camera exposure times and therefore for extremely high-speed processes.

• High excess current factor
• Pulsed mode for inspection of fast moving objects
• Extremely powerful light for high depth of field
• Long life thanks to intelligent thermal management
• Homogeneous luminous field
• High protection type IP 67
• Robust metal housing

Power consumption (in pulse / max.)	275 W
Energization factor (in pulse / max.)	10
Energization (in pulse / max.)	11000 mA
Service voltage	No constant voltage!
Inverse polarity protection	Yes
Insulation voltage endurance	500 V
Diameter	Ø 131 / Ø 200 mm (Diameter)
Height	20 mm
Housing material	Aluminum (Black, Anodized)
Risk group (DIN EN 62471)	Free group
Approvals	UL
Design	Ringlight
Light source	LED
Color	White (diffuse)
Wavelength	6500 K
Deflection angle FWHM	120°
Control	Flashable by means of flash controller
Shock/vibration load	30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation	0 … +40 °C
Protection type	IP 67
Connection	Cable, 2.5 m (flying leads, Use only with flash controller!)
