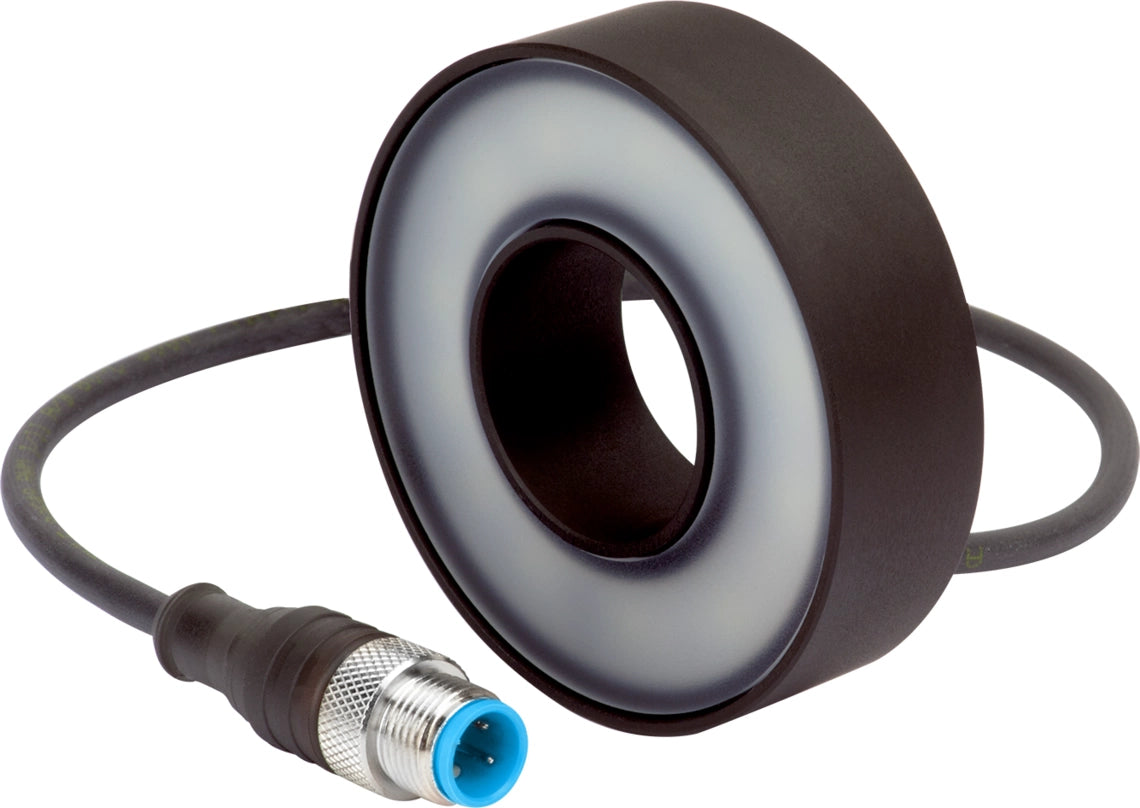

DI-Soric BE-R30-G5-K-BS-DIF Ringlight with switchable CW light

Ringlights with switchable constant light are suited for operation from a 24 VDC voltage source. They offer a constant light intensity over a wide voltage range and are distinguished by features such as trigger inversion and brightness adjustment.

• High light intensity thanks to state-of-the art high power LEDs
• Very compact design
• Long life thanks to intelligent thermal management
• Homogeneous illumination
• Protection class IP 67
• Robust metal housing

Service voltage	24 V DC (Supply Class 2)
Power	4.6 W (24 V DC)
Insulation voltage endurance	500 V
Diameter	Ø 30 / Ø 69 mm (Diameter)
Height	20 mm
Housing material	Aluminum (Black, Anodized)
Protection class	III, operation on protective low voltage
Risk group (DIN EN 62471)	Free group
Approvals	UL
Design	Ringlight
Characteristics	State-of-the-art high power LEDs
Light source	LED
Color	White (diffuse)
Wavelength	6000 K
Deflection angle FWHM	80°
Shock/vibration load	30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation	0 … +40 °C
Protection type	IP 67
Connection	Pigtail, 0.3 m, M12, 3-pin
Connection cable	VK …
