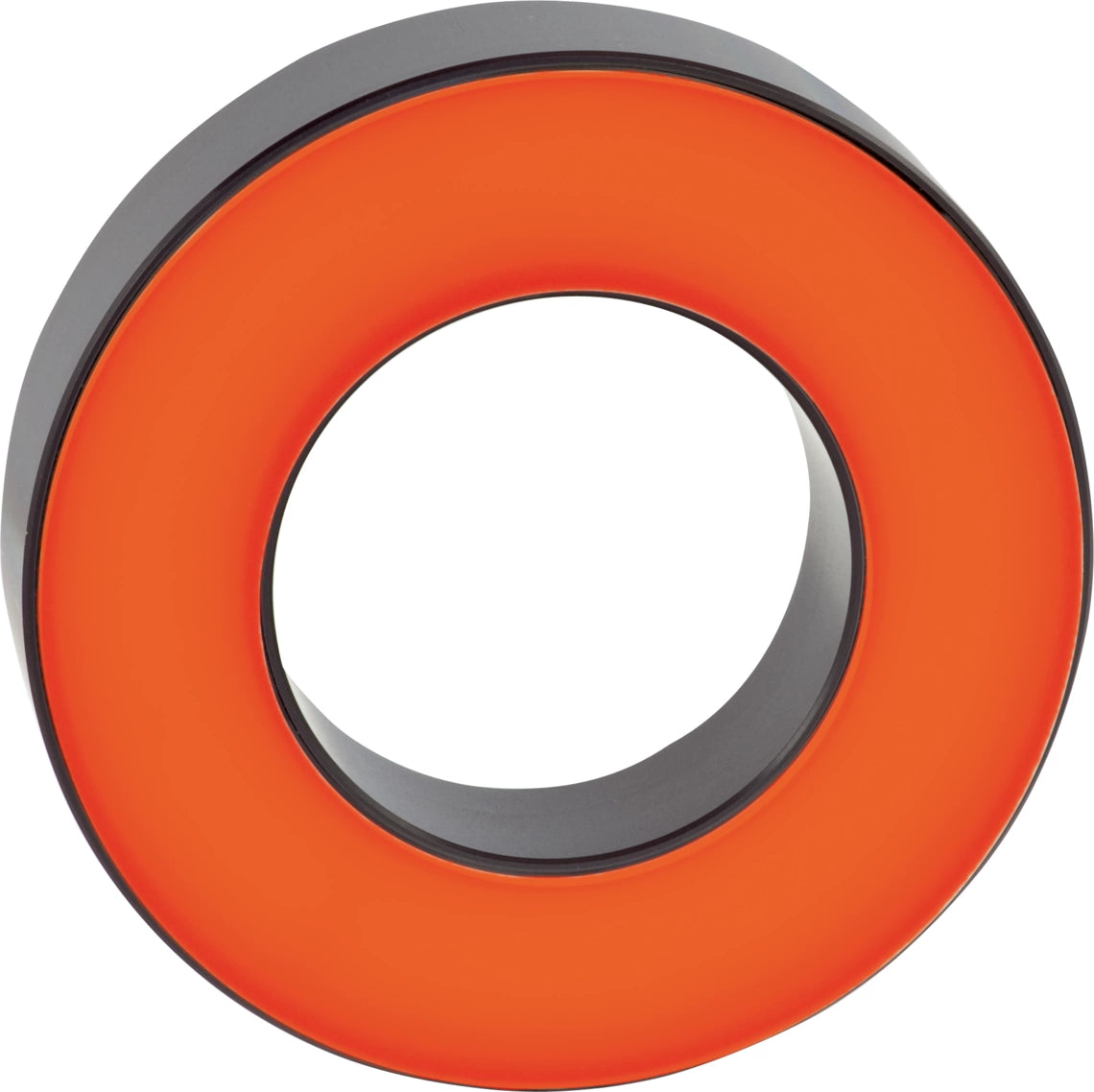

DI-Soric BEK-R70/30-G1TI-IBS-POL Ringlight with switchable CW light

Ringlights with switchable constant light are suited for operation from a 24 VDC voltage source. They offer a constant light intensity over a wide voltage range and are distinguished by features such as trigger inversion and brightness adjustment.

• Constant level of light intensity over the entire voltage range
• Internal control of power output
• Homogeneous illumination
• High protection type IP 67
• External trigger input
• High efficiency
• Light intensity can be adjusted
• Low levels of heat produced
• Sturdy housing design
• Metal casing

Service voltage	18 … 35 V DC (Supply Class 2)
No-load current (max.)	470 mA (24 V DC)
Power	11.5 W (24 V DC)
Inverse polarity protection	Yes
Insulation voltage endurance	500 V
Diameter	Ø 70 / Ø 130 mm (Diameter)
Housing material	Aluminum (Anodized)
Material	PMMA, polarized (Protection optics)
Protection class	III, operation on protective low voltage
Risk group (DIN EN 62471)	Free group
Approvals	UL
Design	Ringlight
Trigger input high level	3.3 … 35.0 V
Trigger input low level	< 2.8 V
Light source	LED
Color	Red (polarized)
Wavelength	633 nm
Deflection angle FWHM	30°
Control	Integrated power control
Display	LED green - Operating display
Shock/vibration load	30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation	0 … +40 °C
Protection type	IP 67
Connection	Connector, M12, 3-pin
Connection cable	VK …
