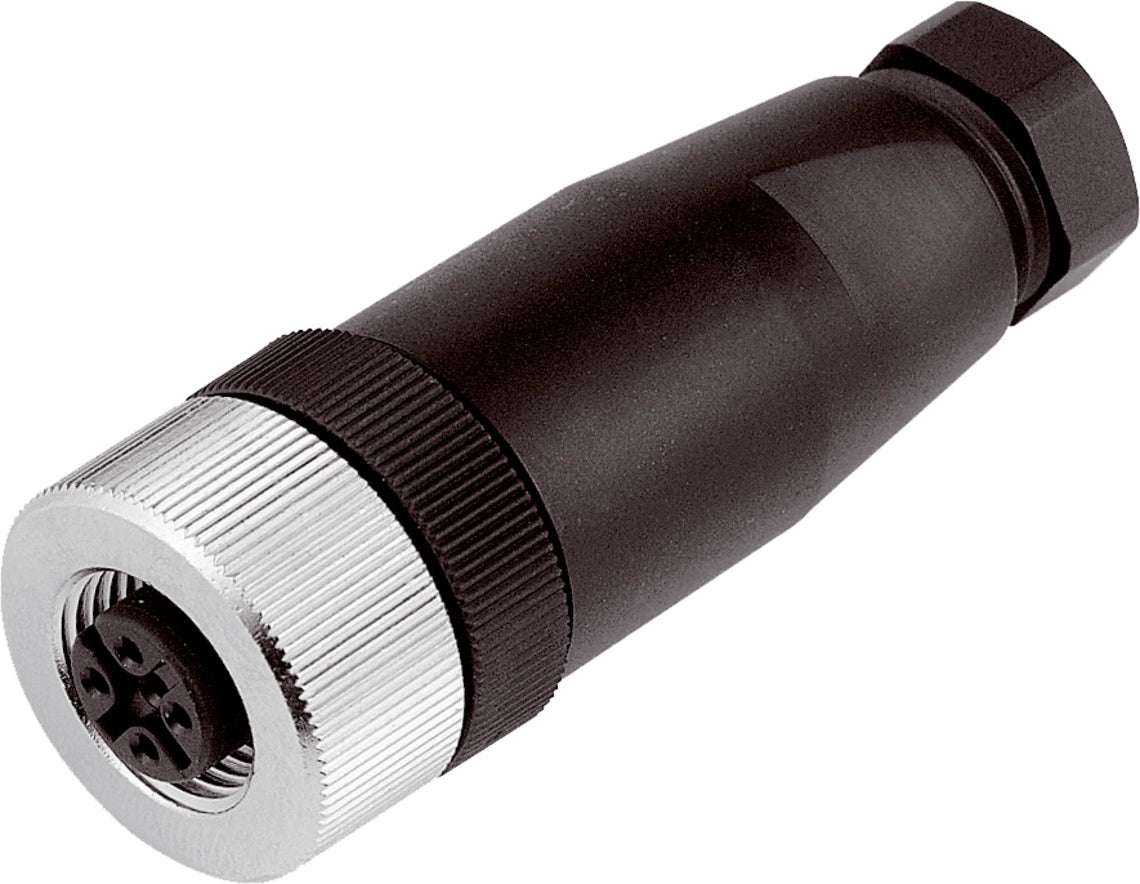

DI-Soric BK-Z-12, Connection technology, sku: 200009

Field-attachable plug connectors have a high protection class and are available in different designs. They are useful accessory parts for connecting sensors to previously existing connection cables that are mechanically incompatible.

• Plastic housing
• Metal thread
• terminals
• 4-pin
• High protection type

Housing material	Plastic
For Ø cable	4.0 … 6.0 mm
For strand cross-section	0.75 mm²
Component	Plug connector
Design	straight
Protection type	IP 67
Sensor-side connection	Socket, M12 x 1, 4-pin
Control-side connection	Field-wireable, terminals
