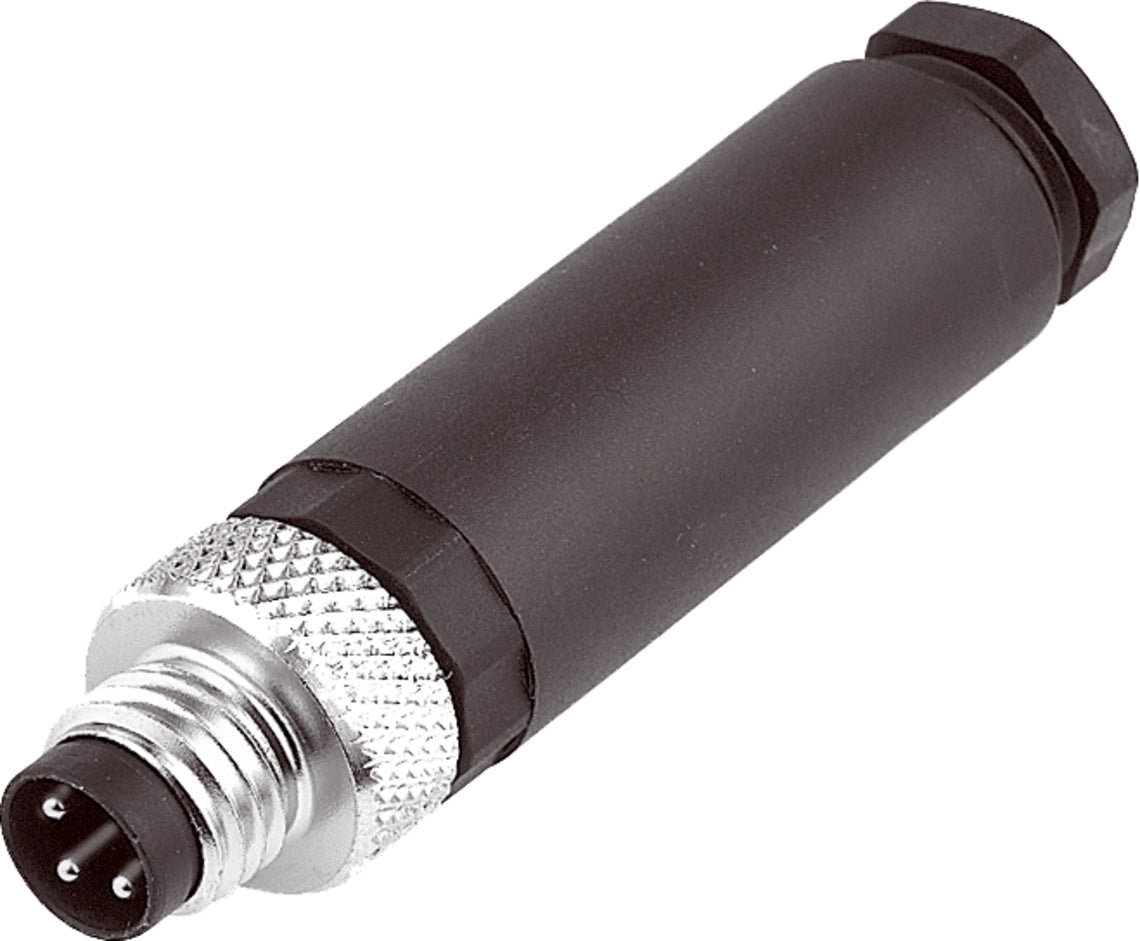

DI-Soric BS-Z-8/4/S, Connection technology, sku: 202408

Field-attachable plug connectors have a high protection class and are available in different designs. They are useful accessory parts for connecting sensors to previously existing connection cables that are mechanically incompatible.

• Plastic housing
• Metal thread
• terminals
• 4-pin
• High protection type of up to IP 67

Housing material	Plastic
For Ø cable	3.5 … 5.0 mm
For strand cross-section	0.25 … 0.34 mm²
Design	straight
Protection type	IP 67
Sensor-side connection	Connector, M8 x 1, 4-pin
Control-side connection	Field-wireable, terminals
