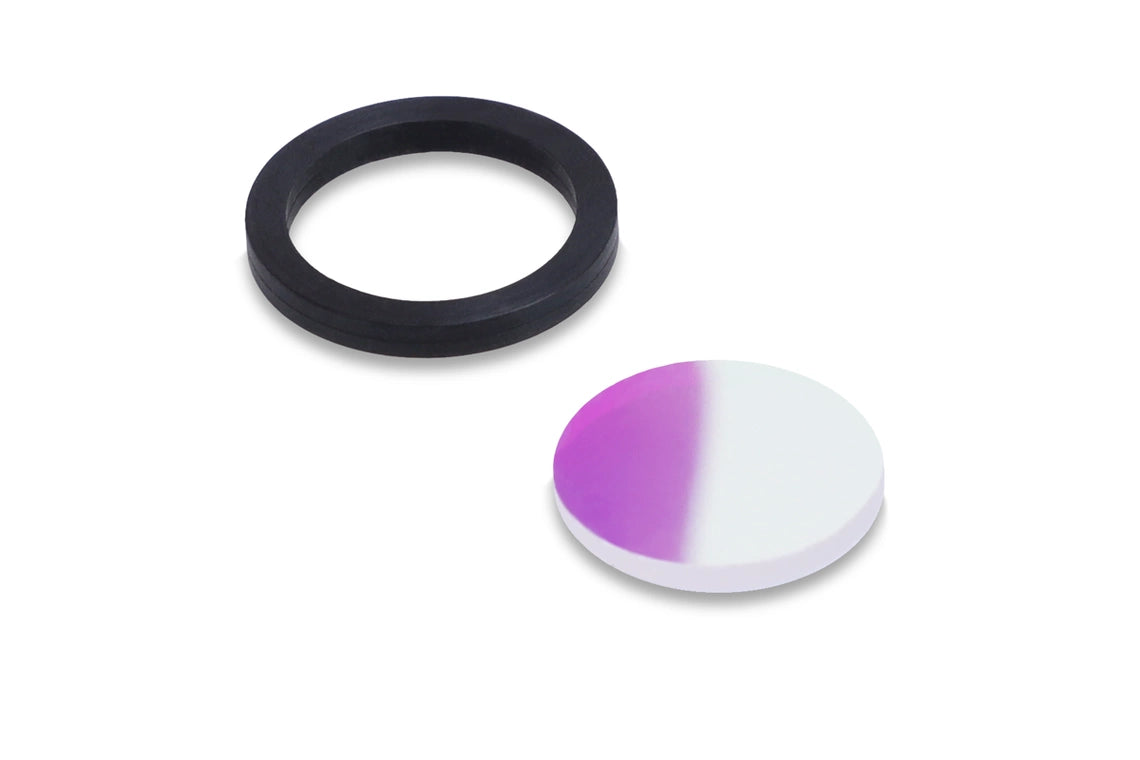

DI-Soric CS60-BP-470-D11.8 Accessories for image processing & identification

In the area of optical accessories, we offer lenses, lens protective caps, and filters.

• Bandpass filter for blue light

Total height (A)	1 mm
Diameter	Ø 11.8 mm (Diameter)
Housing material	Borofloat
Weight	1 g
Component	Bandpass filter
To be used for	CS 60 Vision Sensors
Scope of delivery	Bandpass filter, 1 O-ring
Color	Blue
Wavelength	470 nm
Transmission	435 to 490 nm (> 85%), 350 to 400, 550 to 1100 mm (< 3%)
Angle of incidence AOI	0 … 15°
