DI-Soric CS60-BP-850-D11.8 Accessories for image processing & identification

In the area of optical accessories, we offer lenses, lens protective caps, and filters.

• Infrared filter

Total height (A)	1 mm
Diameter	Ø 11.8 mm (Diameter)
Housing material	Borofloat
Weight	1 g
Component	Bandpass filter
To be used for	CS 60 Vision Sensors

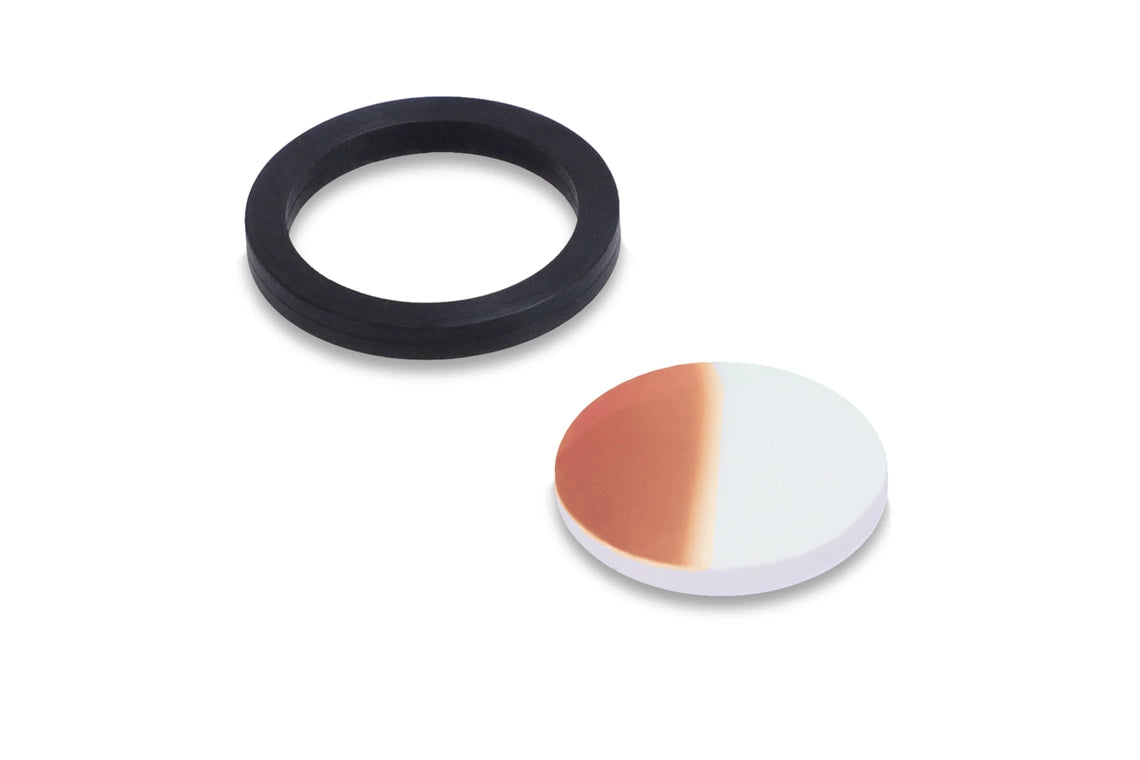

Scope of delivery	Bandpass filter, 1 O-ring
Color	Infrared
Wavelength	850 nm
Transmission	840 to 900 nm (> 85%), 350 to 780, 960 to 1100 mm (< 3%)
Angle of incidence AOI	0 … 15°
