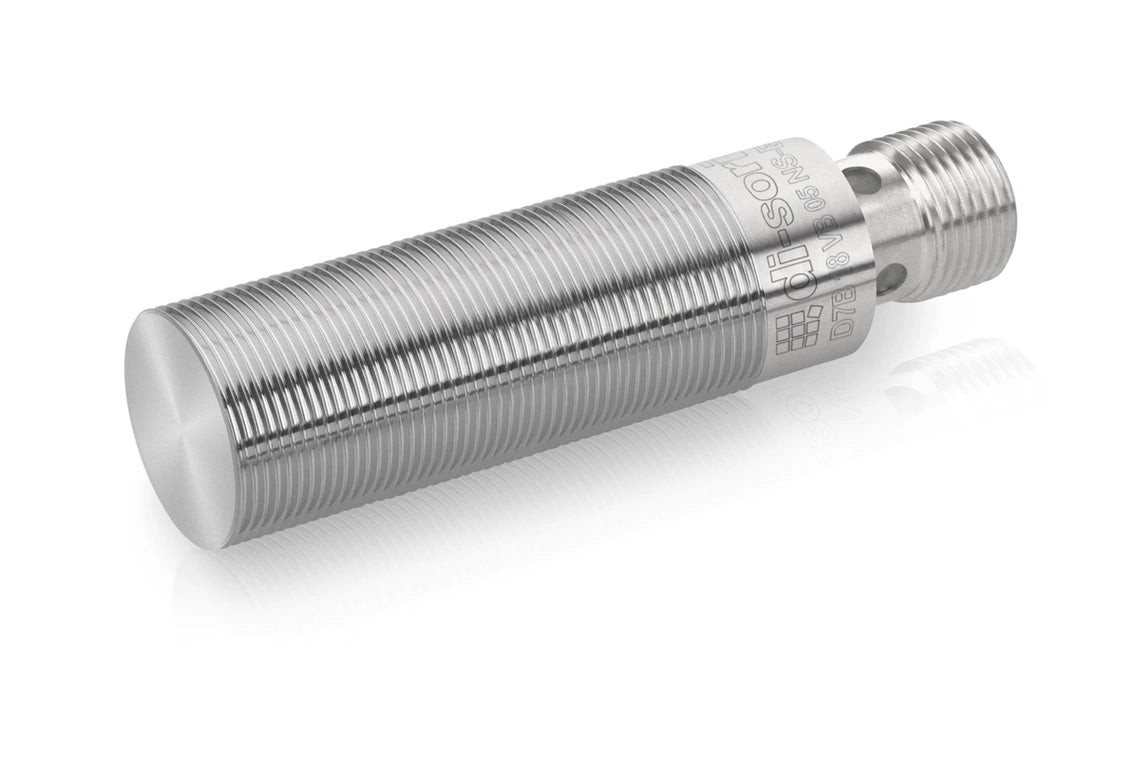

DI-Soric D7B 18 VB 05 PS-B3, Inductive proximity sensor INW-300 Vollmetall Robust, P\n: 209423

The INW full metal series includes highly-resilient, inductive proximity sensors, which are highly resilient to mechanical stresses thanks to their complete full-metal housing. In addition to the inductive proximity switches with IP67, this series also includes products with IP69k, which are completely impermeable to various corrosive chemicals used in cleaning processes. This series is perfect for harsh environments where maximum resistance is required.

• Closed, all-steel sleeve
• Same operating distance to steel and aluminum
• Housing and sensing face made of stainless steel
• Insensitive to aggressive cleaning agents, environmental influences and hot filings
• Metal connector
• Integrated amplifier
• Protection against short-circuit and reverse polarity
• LED

Service voltage	10 … 30 V DC
Internal power consumption	< 10 mA
Insulation voltage endurance	According to IEC 60947-5-2 (7.2.3.1)
Installation type	Flush
Thread	M18 x 1
Housing length	63.5 mm
Housing material	Stainless steel (V2A 1.4305 / AISI 303)
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	inductive
Evaluation	digital
Design	Thread
Characteristics	pressure-resistant, < 60 bar, Full-metal casing closed
Design	Solid metal housing
Product series	INW Full metal
Switching output	pnp, 200 mA, NO
Voltage drop (max.)	2 V
Switching distance (SN)	5 mm
Standardized measuring plate	18 x 18 x 1 mm
Switching hysteresis (max.)	15 %
Switching frequency	100 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 68 / IP 69K
Connection	Connector, M12, 4-pin, A-coded
Connection cable	VK …
