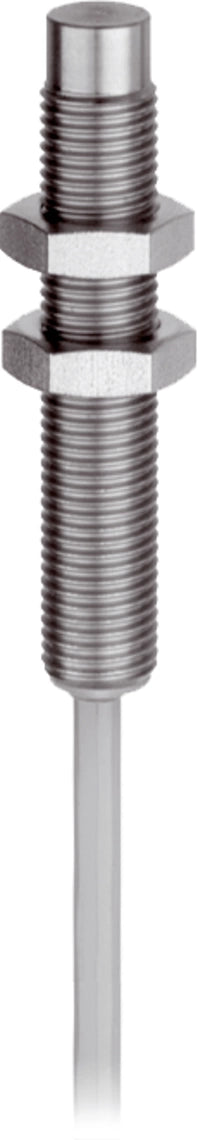

DI-Soric D7C 08 V 06 PSLK Inductive proximity sensor INW

The INW full metal series includes highly-resilient, inductive proximity sensors, which are highly resilient to mechanical stresses thanks to their complete full-metal housing. In addition to the inductive proximity switches with IP67, this series also includes products with IP69k, which are completely impermeable to various corrosive chemicals used in cleaning processes. This series is perfect for harsh environments where maximum resistance is required.

• Closed, all-steel sleeve
• 3-times the standard operating distance
• Same operating distance to steel and aluminum
• Housing and sensing face made of stainless steel
• Insensitive to aggressive cleaning agents, environmental influences and hot filings
• Highly flexible cable
• Integrated amplifier
• Short-circuit protection
• Starting pulse suppression
• LED

Service voltage	10 … 30 V DC
Internal power consumption	< 10 mA
Insulation voltage endurance	According to IEC 60947-5-2 (7.2.3.1)
Installation type	non-flush
Thread	M8 x 1
Housing length	45 mm
Housing material	Stainless steel
Material of cable	Polyurethane
Tightening torque	10 Nm
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	inductive
Evaluation	digital
Design	Thread
Characteristics	extremely high operating distance, < 100 bar, Full-metal casing closed, pressure-resistant
Design	Solid metal housing
Product series	INW Full metal
Switching output	pnp, 200 mA, NO
Voltage drop (max.)	2 V
Switching distance (SN)	6 mm
Standardized measuring plate	18 x 18 x 1 mm
Switching hysteresis (max.)	15 %
Switching frequency	700 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 68
Connection	Cable, 2.0 m (flying leads)
