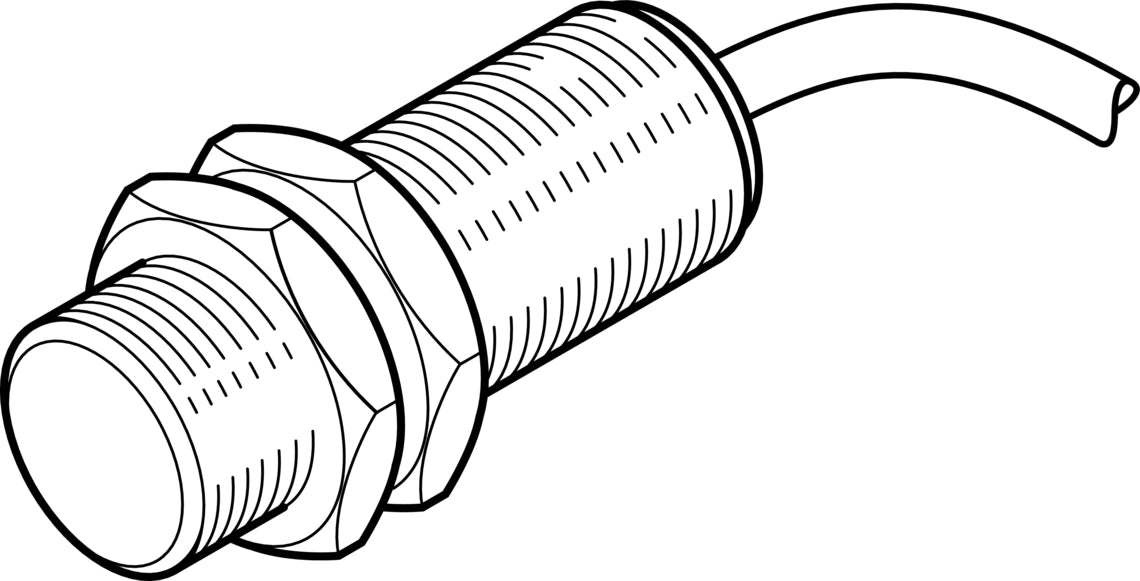

DI-Soric D7CK 18 V 10 PSLK, Inductive proximity sensor INW-300 Vollmetall Robust, P\n: 207733

The INW full metal series includes highly-resilient, inductive proximity sensors, which are highly resilient to mechanical stresses thanks to their complete full-metal housing. In addition to the inductive proximity switches with IP67, this series also includes products with IP69k, which are completely impermeable to various corrosive chemicals used in cleaning processes. This series is perfect for harsh environments where maximum resistance is required.

• Closed, all-steel sleeve
• High protection type
• Sturdy PUR cable
• Large temperature range

Service voltage	10 … 30 V DC
Internal power consumption	< 10 mA
Insulation voltage endurance	According to IEC 60947-5-2 (7.2.3.1)
Installation type	Flush
Thread	M18 x 1
Housing length	35 mm
Housing material	Stainless steel
Material of cable	Polyurethane
Tightening torque	50 Nm
Protection class	III, operation on protective low voltage
Operating principle	inductive
Evaluation	digital
Design	Thread
Design	Solid metal housing
Product series	INW Full metal
Voltage drop (max.)	2 V
Switching distance (SN)	10 mm
Standardized measuring plate	30 x 30 x 1 mm
Switching hysteresis (max.)	15 %
Switching frequency	200 Hz
Ambient temperature during operation	-25 … +85 °C
Protection type	IP 68 / IP 69K
Connection	Cable, 2.0 m (flying leads)
