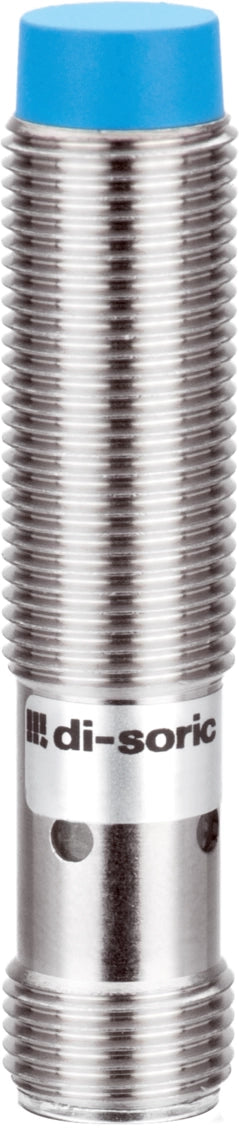

DI-Soric DCBK 12 MN 08 NS-B3 Inductive proximity sensor INE

The INE Industrial series includes high-quality, inductive proximity sensors that are available in all sizes up to M30 – in both normal and short designs. They offer maximum flexibility thanks to 3- and 4-pin M8 and M12 plug connectors and PVC and PUR cable variants. IO-Link sensors are also available for modern and efficient automation. Many of our inductive proximity switches have UL and UKCA certifications and are ideal for international use.

• Short design
• Metal connector
• Integrated amplifier
• Short-circuit protection
• Starting pulse suppression
• 4 LEDs for switching status display

Service voltage	10 … 30 V DC
Internal power consumption	< 10 mA
Insulation voltage endurance	500 V
Installation type	non-flush
Thread	M12 x 1
Housing length	52.3 mm
Housing material	Brass (nickel-plated)
Material	PBT (Sensor probe)
Protection class	III, operation on protective low voltage
Operating principle	inductive
Evaluation	digital
Design	Thread
Characteristics	increased operating distance
Product series	INE Industrial
Switching output	npn, 200 mA, NO
Voltage drop (max.)	1.8 V (200 mA)
Switching distance (SN)	8 mm
Standardized measuring plate	24 x 24 x 1 mm
Switching hysteresis (max.)	1 … 20 %
LED Anzeige	Yes
Switching frequency	2000 Hz
MTTFd	1304 Years
MTBF	652 Years
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M12, 3-pin, A-coded
Connection cable	VK …
