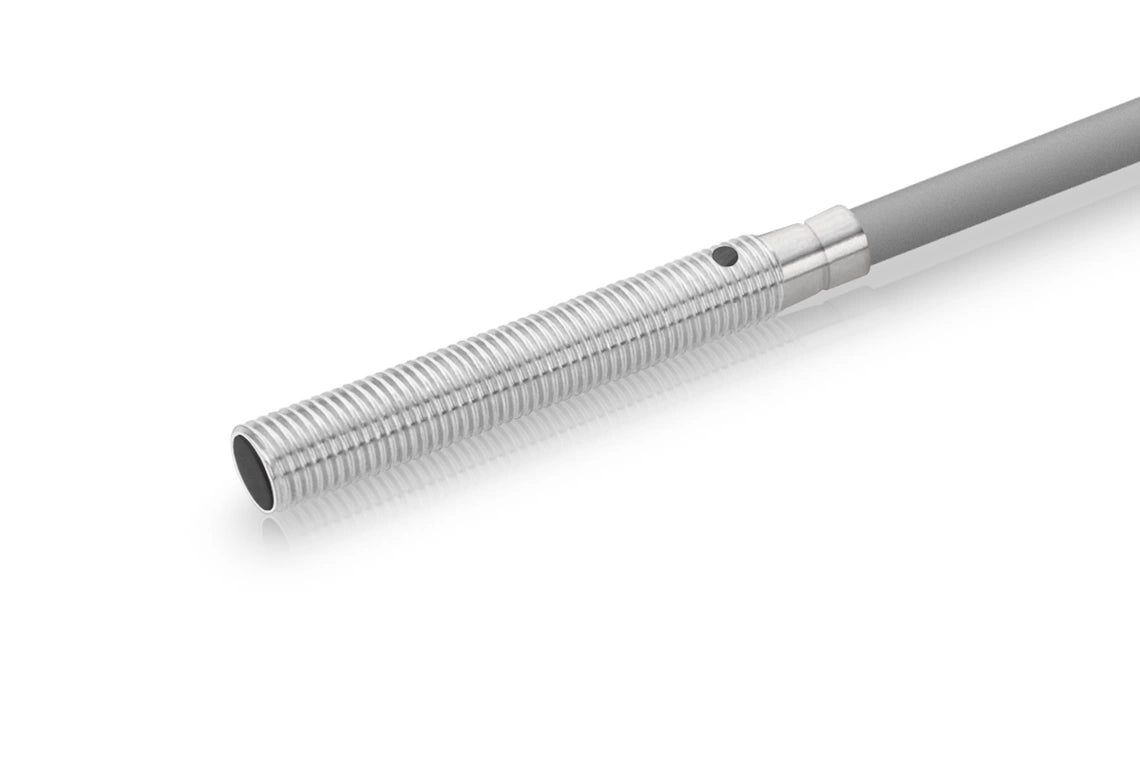

DI-Soric DCC 04 M 0.6 PSLK Inductive proximity sensor INM

The INM Miniature series offers a large selection of high-precision and efficient inductive proximity sensors. These compact sensors are specially designed for applications with limited space and enable reliable object detection in the smallest installation spaces. Available in a robust metal housing with diameters of Ø 3.0 mm to M5, proximity sensors are ideal for precise automation solutions. Thanks to their compact design, they offer maximum performance within a minimum amount of space.

• Highly flexible cable
• Integrated amplifier
• Short-circuit protection
• Starting pulse suppression
• LED

Service voltage	10 … 30 V DC
Internal power consumption	< 10 mA
Insulation voltage endurance	According to IEC 60947-5-2 (7.2.3.1)
Installation type	Flush
Thread	M4 x 0.5
Housing length	22 mm
Housing material	Stainless steel (V4A)
Material of cable	Polyurethane
Tightening torque	0.8 Nm
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	inductive
Evaluation	digital
Design	Thread
Design	Miniature design
Product series	INM Miniature
Switching output	pnp, 100 mA, NO
Voltage drop (max.)	2 V (100 mA)
Switching distance (SN)	0.6 mm
Standardized measuring plate	4 x 4 x 1 mm
Switching hysteresis (max.)	< 10 %
Switching frequency	5000 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Cable, 2.0 m (flying leads)
