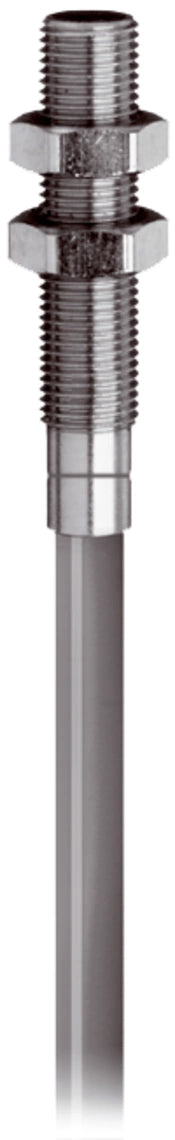

DI-Soric DCC 05 V 0.6 PSLK-E, Inductive proximity sensor INM-100 Miniatur, P\n: 200207

The INM Miniature series offers a large selection of high-precision and efficient inductive proximity sensors. These compact sensors are specially designed for applications with limited space and enable reliable object detection in the smallest installation spaces. Available in a robust metal housing with diameters of Ø 3.0 mm to M5, proximity sensors are ideal for precise automation solutions. Thanks to their compact design, they offer maximum performance within a minimum amount of space.

• Pressure-resistant design
• Stainless steel housing
• Sensing surface sapphire
• Highly flexible cable
• Integrated amplifier
• Short-circuit protection
• Starting pulse suppression

Service voltage	10 … 30 V DC
Internal power consumption	< 10 mA
Insulation voltage endurance	According to IEC 60947-5-2 (7.2.3.1)
Installation type	Flush
Thread	M5 x 0.5
Housing length	25 mm
Housing material	Stainless steel (V4A)
Material of cable	Polyurethane
Tightening torque	1.5 Nm
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	inductive
Evaluation	digital
Design	Thread
Characteristics	< 20 bar, pressure-resistant
Design	Miniature design
Product series	INM Miniature
Switching output	pnp, 200 mA, NO
Voltage drop (max.)	2 V (200 mA)
Switching distance (SN)	0.6 mm
Standardized measuring plate	5 x 5 x 1 mm
Switching hysteresis (max.)	< 10 %
Switching frequency	3000 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 68
Connection	Cable, 2.0 m (flying leads)
