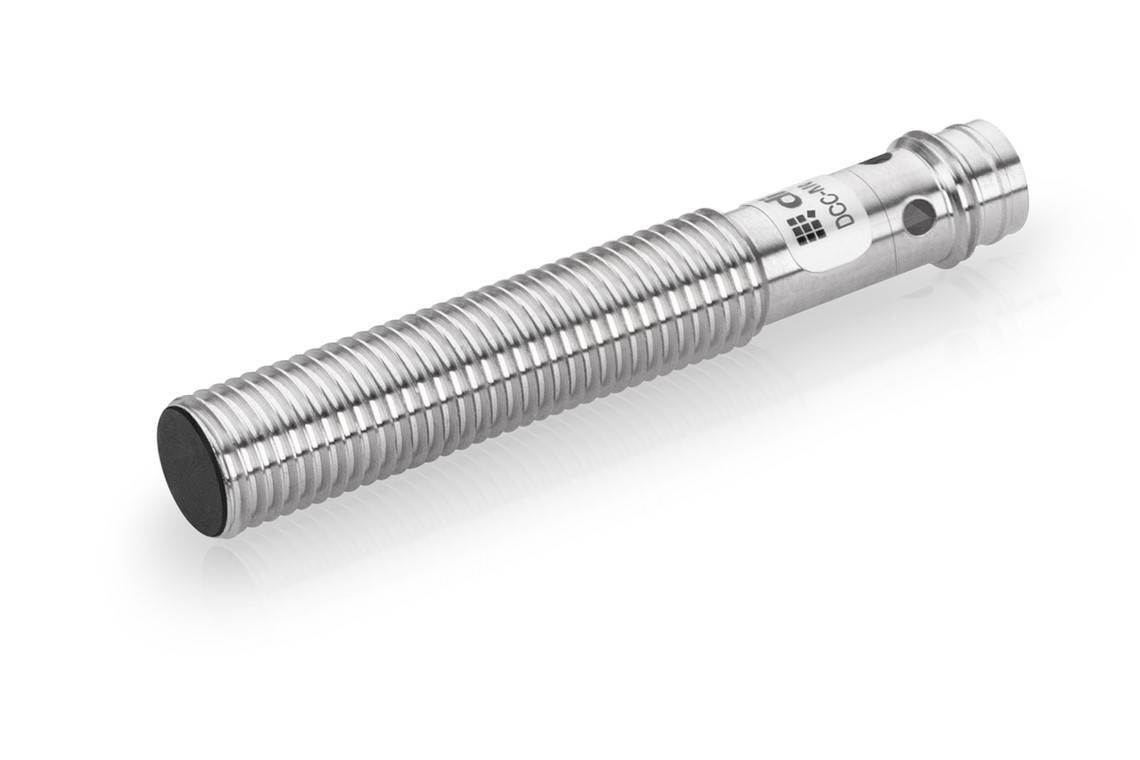

DI-Soric DCC 08 M 02 NSK-TSL Inductive. Proximity sensors. INS-200 Standard 2-SN

The INS Standard series offers reliable inductive proximity sensors for a wide variety of industrial applications. This series, which has an excellent price/performance ratio, is ideal for standard applications in automation technology. Available in conventional designs of Ø 6.5 mm up to M30 and with switching distances of 1 to 15 mm, these sensors offer maximum flexibility for different fields of application. The inductive proximity switches are available with both the PVC cable and plug connection and ensure easy integration into existing systems.

• Metal connector
• Integrated amplifier
• Short-circuit protection
• Starting pulse suppression
• LED

Service voltage	10 … 30 V DC
Internal power consumption	< 10 mA
Insulation voltage endurance	500 V
Installation type	Flush
Thread	M8 x 1
Housing length	45 mm
Housing material	Stainless steel
Tightening torque	4 Nm
Protection class	III, operation on protective low voltage
Operating principle	inductive
Evaluation	digital
Design	Thread
Characteristics	increased operating distance
Product series	INS Standard
Switching output	npn, 200 mA, NO
Voltage drop (max.)	2.4 V
Switching distance (SN)	2 mm
Standardized measuring plate	8 x 8 x 1 mm
Switching hysteresis (max.)	< 15 %
Switching frequency	2000 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin, A-coded
Connection cable	TK …
