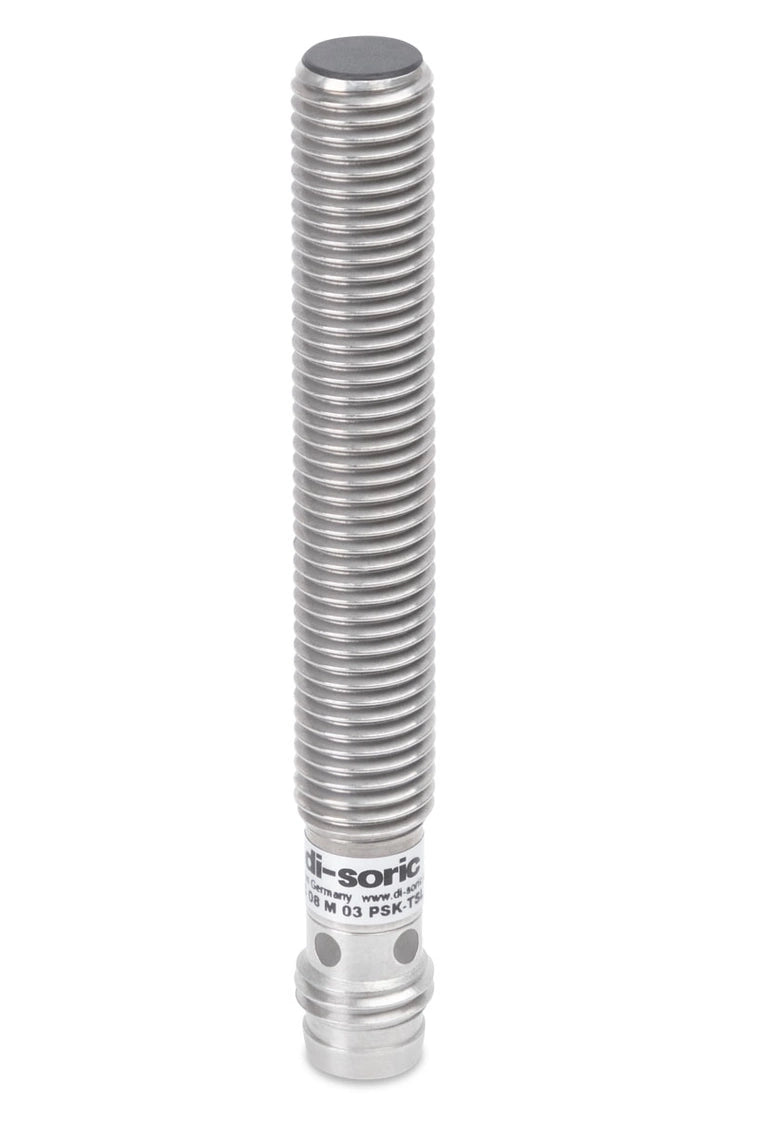

DI-Soric DCC 08 M 03 NSK-TSL Inductive proximity sensor INE

The INE Industrial series includes high-quality, inductive proximity sensors that are available in all sizes up to M30 – in both normal and short designs. They offer maximum flexibility thanks to 3- and 4-pin M8 and M12 plug connectors and PVC and PUR cable variants. IO-Link sensors are also available for modern and efficient automation. Many of our inductive proximity switches have UL and UKCA certifications and are ideal for international use.

• Metal connector
• Integrated amplifier
• Short-circuit protection
• Starting pulse suppression
• LED

Service voltage	10 … 30 V DC
Internal power consumption	< 10 mA
Insulation voltage endurance	500 V
Installation type	Flush
Thread	M8 x 1
Housing length	60 mm
Housing material	Brass
Protection class	III, operation on protective low voltage
Operating principle	inductive
Evaluation	digital
Design	Thread
Characteristics	extremely high operating distance
Product series	INE Industrial
Switching output	npn, 200 mA, NO
Voltage drop (max.)	2 V
Switching distance (SN)	3 mm
Standardized measuring plate	9 x 9 x 1 mm
Switching hysteresis (max.)	< 15 %
Switching frequency	1000 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin, A-coded
Connection cable	TK …
