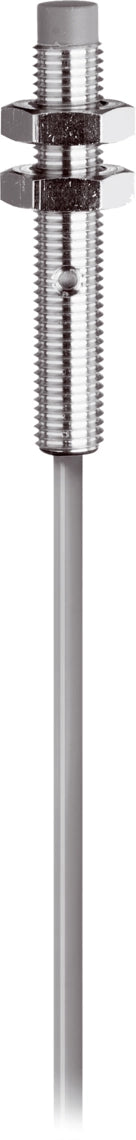

DI-Soric DCC 08 M 06 PSLK Inductive proximity sensor INE

The INE Industrial series includes high-quality, inductive proximity sensors that are available in all sizes up to M30 – in both normal and short designs. They offer maximum flexibility thanks to 3- and 4-pin M8 and M12 plug connectors and PVC and PUR cable variants. IO-Link sensors are also available for modern and efficient automation. Many of our inductive proximity switches have UL and UKCA certifications and are ideal for international use.

• Highly flexible cable
• Integrated amplifier
• Short-circuit protection
• Starting pulse suppression
• LED

Service voltage	10 … 30 V DC
Internal power consumption	< 10 mA
Insulation voltage endurance	According to IEC 60947-5-2 (7.2.3.1)
Installation type	non-flush
Thread	M8 x 1
Housing length	45 mm
Housing material	Brass (chromium-plated)
Material of cable	PVC
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	inductive
Evaluation	digital
Design	Thread
Characteristics	extremely high operating distance
Product series	INE Industrial
Switching output	pnp, 200 mA, NO
Voltage drop (max.)	2 V (200 mA)
Switching distance (SN)	6 mm
Standardized measuring plate	18 x 18 x 1 mm
Switching hysteresis (max.)	3 … 15 %
Switching frequency	500 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Cable, 2.0 m (flying leads)
