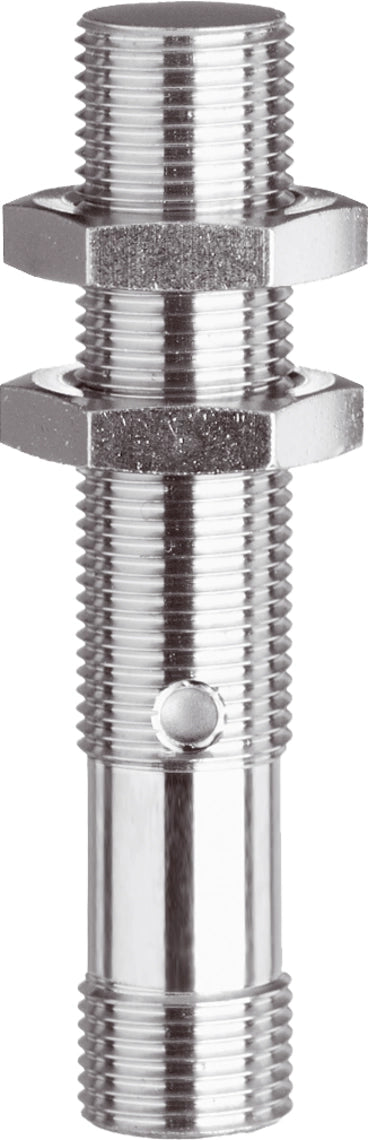

DI-Soric DCC 12 M 08 PSK-IBSL, Inductive proximity sensor INC-400 Großer Schaltabstand, P\n: 200303

The INE Industrial series includes high-quality, inductive proximity sensors that are available in all sizes up to M30 – in both normal and short designs. They offer maximum flexibility thanks to 3- and 4-pin M8 and M12 plug connectors and PVC and PUR cable variants. IO-Link sensors are also available for modern and efficient automation. Many of our inductive proximity switches have UL and UKCA certifications and are ideal for international use.

• Metal connector
• Integrated amplifier
• Short-circuit protection
• Starting pulse suppression
• LED

Service voltage	10 … 30 V DC
Internal power consumption	< 10 mA
Insulation voltage endurance	According to IEC 60947-5-2 (7.2.3.1)
Installation type	quasi-flush
Thread	M12 x 1
Housing length	60 mm
Housing material	Brass (chromium-plated)
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	inductive
Evaluation	digital
Design	Thread
Characteristics	extremely high operating distance
Product series	INE Industrial
Switching output	pnp, 200 mA, NO
Voltage drop (max.)	2 V (200 mA)
Switching distance (SN)	8 mm
Standardized measuring plate	24 x 24 x 1 mm
Switching hysteresis (max.)	< 3 … < 15 %
Switching frequency	400 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M12, 4-pin, A-coded
Connection cable	VK …
