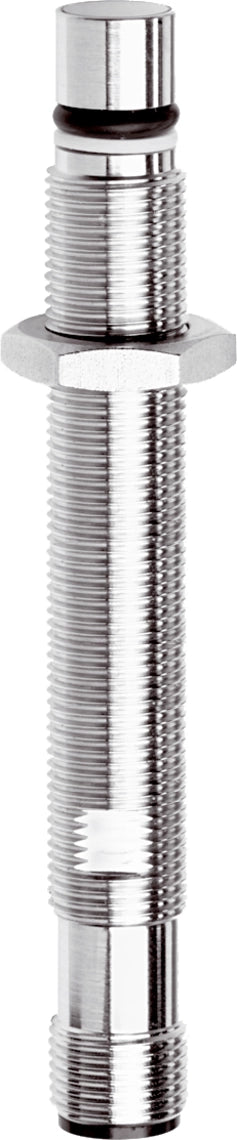

DI-Soric DCC 12 V 1.5 PSK-IBSL 500/93 Inductive proximity sensor INP

Our high pressure-resistant, inductive proximity sensors with robust stainless steel housing in sizes M12 and M14 are specially developed for demanding applications under high pressure. They can withstand a process pressure of up to 500 bar and offer reliable performance in extreme environments. These inductive proximity switches are ideal for position monitoring in hydraulic systems and detection of valve positions under high pressure.

• High-pressure resistant version up to 500 bar
• Stainless steel housing
• Sensing surface ZrO2-ceramic
• Metal connector
• Integrated amplifier
• Short-circuit protection
• Starting pulse suppression

Service voltage	10 … 30 V DC
Internal power consumption	< 10 mA
Insulation voltage endurance	According to IEC 60947-5-2 (7.2.3.1)
Installation type	Flush
Thread	M12 x 1
Housing length	93 mm
Housing material	Stainless steel / ZrO2 ceramic
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	inductive
Evaluation	digital
Design	Thread
Design	High-pressure resistant
Product series	INP High-pressure resistant
Switching output	pnp, 200 mA, NO
Voltage drop (max.)	2 V
Switching distance (SN)	1.5 mm
Standardized measuring plate	10 x 10 x 1 mm
Switching hysteresis (max.)	10 %
Switching frequency	600 Hz
Ambient temperature during operation	-25 … +80 °C
Protection type	IP 68
Pressure resistant	< 500 bar
Connection	Connector, M12, 3-pin, A-coded
Connection cable	VK …
