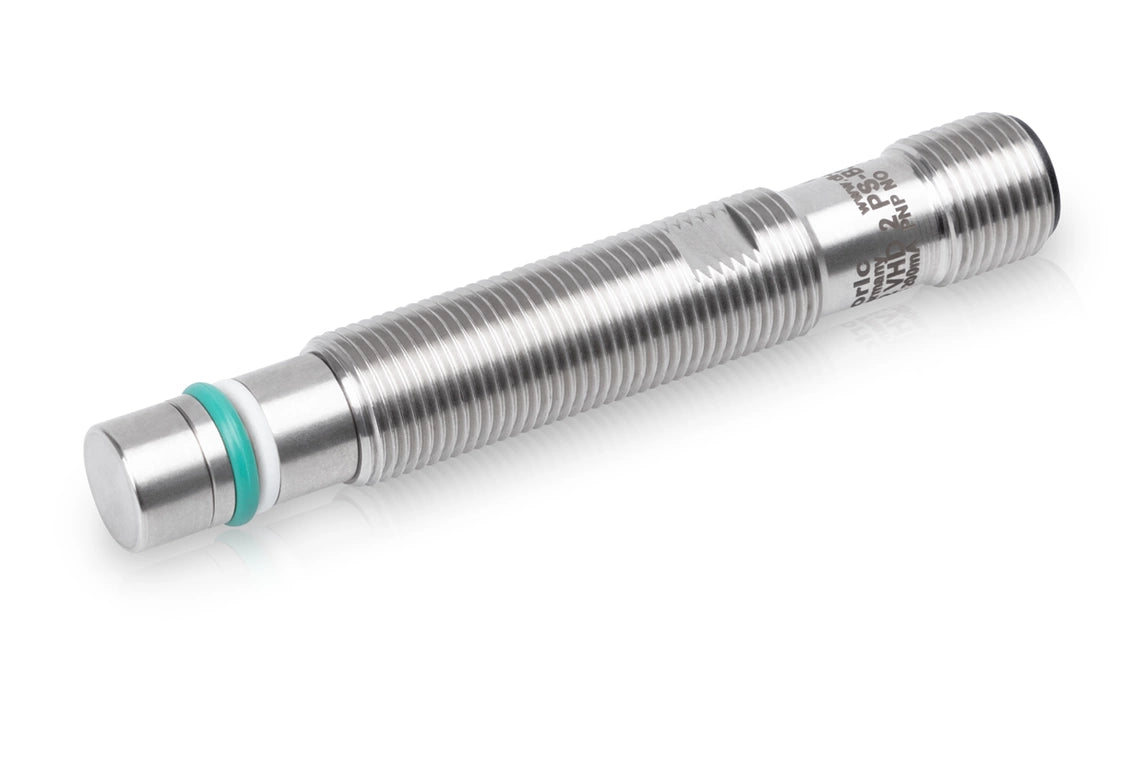

DI-Soric DCC 12 VHD 2 PS-B3-78-7 Inductive proximity sensor INP

Our high pressure-resistant, inductive proximity sensors with robust stainless steel housing in sizes M12 and M14 are specially developed for demanding applications under high pressure. They can withstand a process pressure of up to 500 bar and offer reliable performance in extreme environments. These inductive proximity switches are ideal for position monitoring in hydraulic systems and detection of valve positions under high pressure.

• High-pressure resistant version up to 500 bar
• High-temperature resistant up to 100 °C permanent temperature
• Housing and sensing face made of stainless steel
• Integrated amplifier
• Short-circuit protection
• Starting pulse suppression

Service voltage	10 … 30 V DC
Internal power consumption	< 10 mA
Insulation voltage endurance	500 V
Installation type	Flush
Thread	M12 x 1
Housing length	78 mm
Housing material	Stainless steel (V2A 1.4301 / AISI 304)
Protection class	III, operation on protective low voltage
Operating principle	inductive
Evaluation	digital
Design	Thread
Characteristics	High-pressure resistant
Design	High-pressure resistant
Product series	INP High-pressure resistant
Switching output	pnp, 200 mA, NO
Voltage drop (max.)	2.4 V
Switching distance (SN)	2 mm
Standardized measuring plate	10 x 10 x 1 mm
Switching hysteresis (max.)	15 %
Switching frequency	400 Hz
Ambient temperature during operation	-25 … +100 °C
Protection type	IP 68 / IP 69K
Pressure resistant	< 500 bar
Connection	Connector, M12, 4-pin, A-coded
Connection cable	VK …
