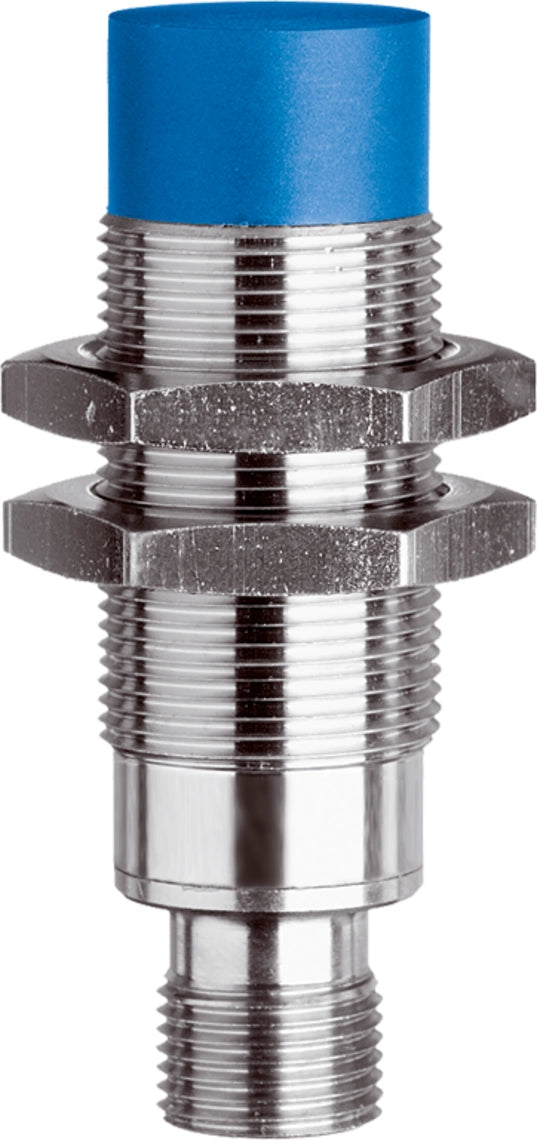

DI-Soric DCC 18 M 20/10 AIK-IBS, Inductive proximity sensor INA Analog, P\n: 206291

The INA analog series offers high-precision, inductive proximity sensors with analog current and voltage outputs. They are specially developed for applications in which even the smallest changes in the distance between metal parts can influence the process quality. Thanks to their precise measuring capability, these inductive proximity switches are ideal for demanding industrial applications in which continuous distance control is crucial.

• Analog current output
• Analog voltage output
• Metal connector
• Integrated amplifier
• Short-circuit protection
• Inverse polarity protection
• Starting pulse suppression

Service voltage	15 … 30 V DC
Internal power consumption	12 mA
Insulation voltage endurance	According to IEC 60947-5-2 (7.2.3.1)
Installation type	non-flush
Thread	M18 x 1
Housing length	63.4 mm
Housing material	Brass (CuZn, nickel-plated)
Material of sensor probe	PBT
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	inductive
Evaluation	analog
Design	Thread
Characteristics	extremely high operating distance
Product series	INA Analog
Analog output	0 … 10 V (> 10 kΩ, unlinearized), 4 … 20 mA (< 0,5 kΩ, unlinearized)
Switching distance (SN)	0 … 20 mm
Resolution	5.0 µm
Standardized measuring plate	60 x 60 x 1 mm
Reproducibility	0.05 mm (TA = constant)
Switching frequency	250 Hz
Shock/vibration load	IEC 60947-5-2 / 7.4
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M12, 4-pin, A-coded
Connection cable	VK …
