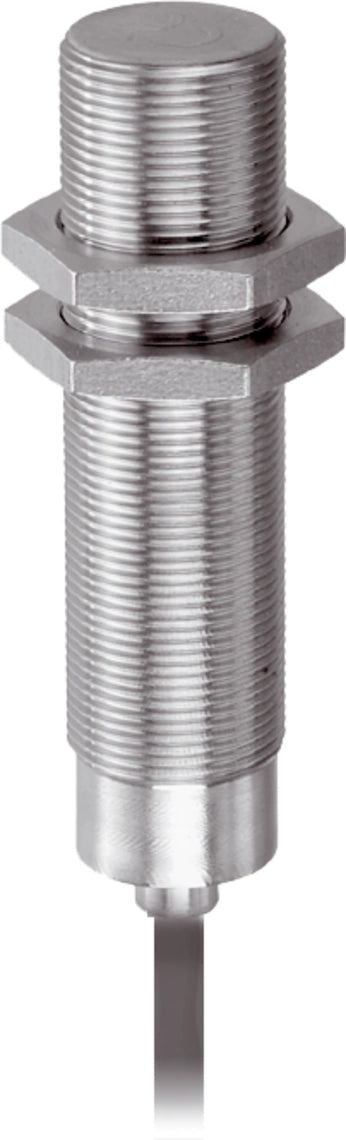

DI-Soric DCC 18 VH 05 NSK/230/V/IP67 Inductive proximity sensor INH

The INH high-temperature-resistant series was specially developed for demanding applications and includes inductive proximity sensors in the designs from M8 to M50 with a switching distance of 2 to 25 mm. They are ideal for use in extreme environments with temperatures of -25 °C to+230 °C thanks to an external evaluation unit. These inductive proximity switches are equipped with PTFE or silicone lines to guarantee maximum resistance to high temperatures and aggressive media.

• High-temperature resistant up to 230 °C permanent temperature
• Stainless steel housing
• Sensing surface LCP
• Cable material PTFE
• Integrated amplifier
• Short-circuit protection
• Starting pulse suppression

Service voltage	10 … 30 V DC
Insulation voltage endurance	500 V
Installation type	Flush
Thread	M18 x 1
Housing length	76 mm
Housing material	Stainless steel (LCP)
Tightening torque	50 Nm
Protection class	III, operation on protective low voltage
Operating principle	inductive
Evaluation	digital
Design	Thread
Characteristics	< +230 °C, high-temperature resistant
Design	High-temperature resistant
Product series	INH High-temperature resistant
Switching output	npn, NO
Voltage drop (max.)	2 V
Switching distance (SN)	5 mm
Standardized measuring plate	18 x 18 x 1 mm
Ambient temperature during operation	0 … +230 °C
Protection type	IP 67
Connection	Cable, 2.0 m (flying leads)
