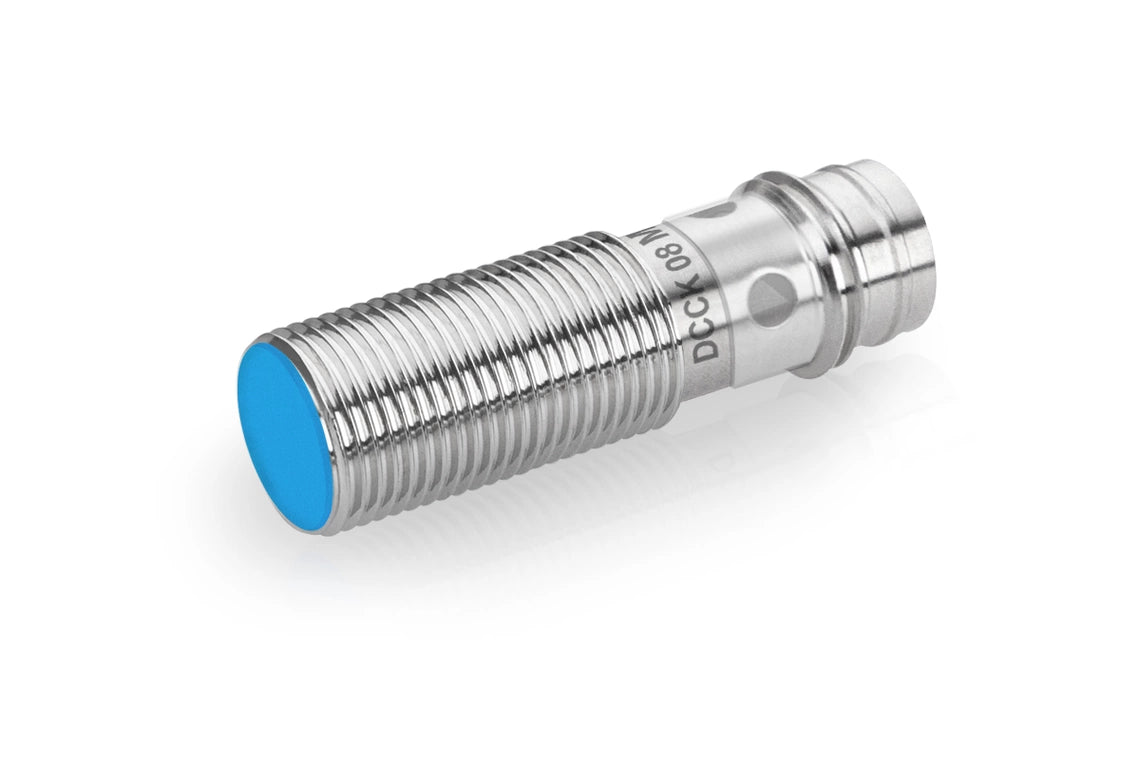

DI-Soric DCCK 08 M 1.5 PSK-TSL Inductive proximity sensor INE

The INE Industrial series includes high-quality, inductive proximity sensors that are available in all sizes up to M30 – in both normal and short designs. They offer maximum flexibility thanks to 3- and 4-pin M8 and M12 plug connectors and PVC and PUR cable variants. IO-Link sensors are also available for modern and efficient automation. Many of our inductive proximity switches have UL and UKCA certifications and are ideal for international use.

• Metal connector
• Integrated amplifier
• Short-circuit protection
• Starting pulse suppression
• LED

Service voltage	10 … 30 V DC
Internal power consumption	< 10 mA
Insulation voltage endurance	According to IEC 60947-5-2 (7.2.3.1)
Installation type	Flush
Thread	M8 x 1
Housing length	29 mm
Housing material	Stainless steel (V4A)
Tightening torque	4 Nm
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	inductive
Evaluation	digital
Design	Thread
Product series	INE Industrial
Switching output	pnp, 200 mA, NO
Voltage drop (max.)	2 V
Switching distance (SN)	1.5 mm
Standardized measuring plate	8 x 8 x 1 mm
Switching hysteresis (max.)	5 %
LED Anzeige	Yes
Switching frequency	5000 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin, A-coded
Connection cable	TK …
