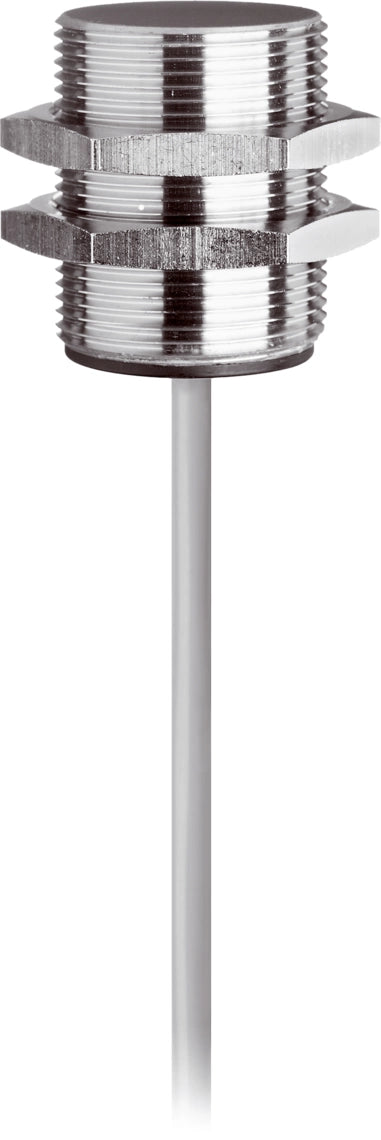

DI-Soric DCCK 30 M 20 AIK, Inductive proximity sensor INA Analog, P\n: 203026

The INA analog series offers high-precision, inductive proximity sensors with analog current and voltage outputs. They are specially developed for applications in which even the smallest changes in the distance between metal parts can influence the process quality. Thanks to their precise measuring capability, these inductive proximity switches are ideal for demanding industrial applications in which continuous distance control is crucial.

• Analog voltage output
• Analog current output
• Highly flexible cable
• Integrated amplifier
• Starting pulse suppression

Service voltage	10 … 30 V DC
Internal power consumption	10 mA
Insulation voltage endurance	According to IEC 60947-5-2 (7.2.3.1)
Installation type	quasi-flush
Thread	M30 x 1.5
Housing length	35 mm
Housing material	Brass (CuZn, nickel-plated)
Material of sensor probe	PBTP (Crastin)
Tightening torque	70 Nm
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	inductive
Evaluation	analog
Design	Thread
Characteristics	extremely high operating distance
Product series	INA Analog
Analog output	0 … 5 V, 1 … 5 mA
Switching distance (SN)	0 … 20 mm
Standardized measuring plate	60 x 60 x 1 mm
Switching frequency	200 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Cable, 2.0 m (flying leads)
