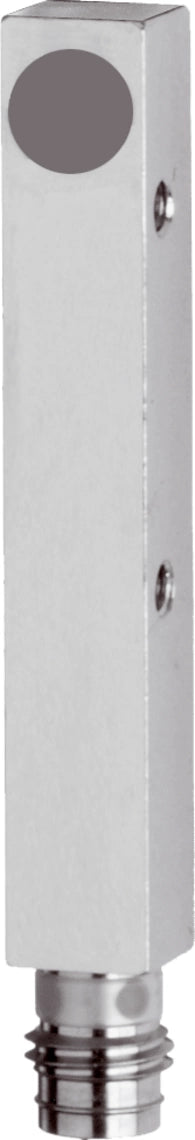

DI-Soric DCCQ 08 M 04/10 AK-TSL Inductive proximity sensor INA

The INA analog series offers high-precision, inductive proximity sensors with analog current and voltage outputs. They are specially developed for applications in which even the smallest changes in the distance between metal parts can influence the process quality. Thanks to their precise measuring capability, these inductive proximity switches are ideal for demanding industrial applications in which continuous distance control is crucial.

• Analog voltage output
• Metal connector
• Integrated amplifier
• Short-circuit protection

Service voltage	15 … 30 V DC
Internal power consumption	10 mA
Insulation voltage endurance	According to IEC 60947-5-2 (7.2.3.1)
Installation type	quasi-flush
Housing dimensions	8 x 8 mm
Housing length	59 mm
Housing height	8 mm
Housing width	8 mm
Housing material	Brass (CuZn, nickel-plated)
Tightening torque	4 Nm
Protection class	III, operation on protective low voltage
Approvals	UL
Operating principle	inductive
Evaluation	analog
Design	Cuboid design
Characteristics	extremely high operating distance
Product series	INA Analog
Analog output	0 … 10 V
Switching distance (SN)	0 … 4 mm
Standardized measuring plate	12 x 12 x 1 mm
Switching hysteresis (max.)	5 %
Switching frequency	1600 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Connector, M8, 3-pin, A-coded
