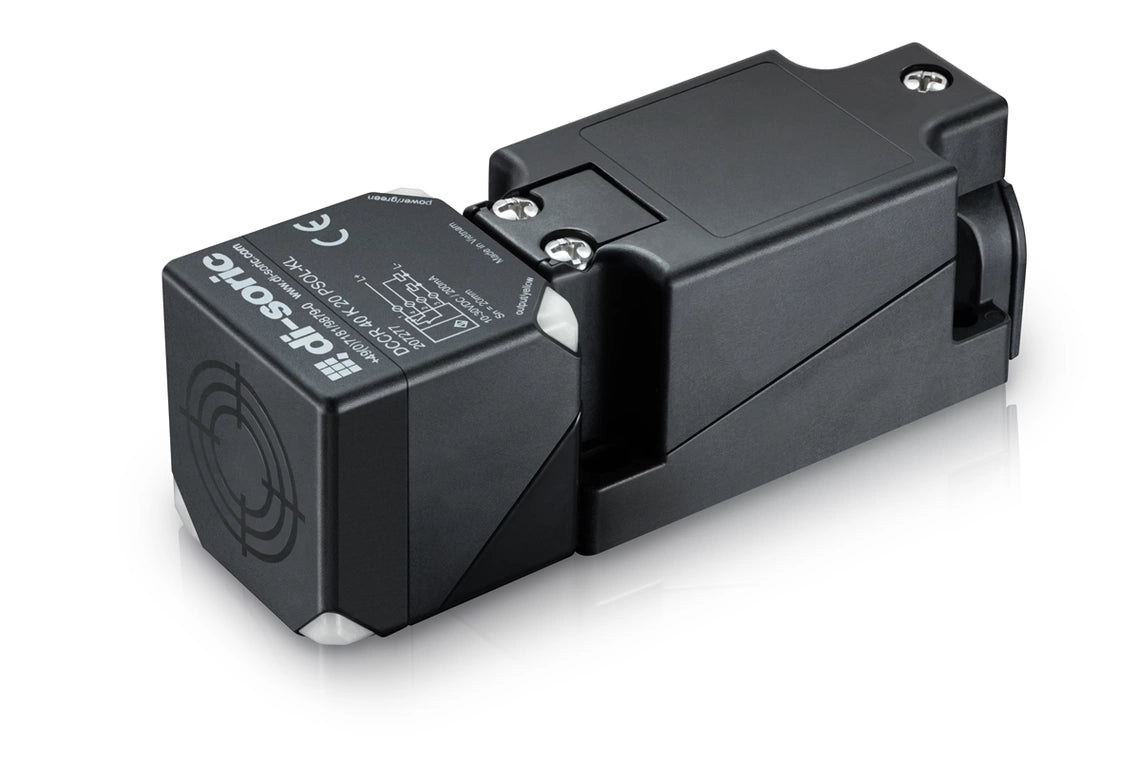

DI-Soric DCCR 40 K 40 PSOL-KL, Inductive proximity sensor INE-200 Industriell, P\n: 207278

The INQ Cube design includes high-performance inductive proximity sensors in sizes 5 x 5 mm, 8 x 8 mm, 40 x 40 mm and the rectangular design in 8 x 16 mm, 28 x 10 mm and 40 x12 mm and enables optimal adaptation to a wide variety of industrial applications. Thanks to the robust plastic or metal housing, these inductive proximity with switching distances of 0.6 mm to 40 mm, they cover a wide range of applications.

• Sensor probe pivotable as well as rotatable
• terminals
• Integrated amplifier
• Protection against short-circuit and reverse polarity
• Starting pulse suppression
• LEDs for service voltage and switching status
• 4-way LED indicator for 360° visibility

Current-carrying capacity	short-circuit-proof, polarity-safe
Service voltage	10 … 30 V DC
Internal power consumption	< 20 mA
Installation type	non-flush
Housing dimensions	40 x 40 mm
Housing length	118 mm
Housing height	40 mm
Housing width	40 mm
Housing material	Plastic (PA, Epoxy powder coating) / Metal (Epoxy powder coating)
Protection class	III, operation on protective low voltage
Operating principle	inductive
Evaluation	digital
Design	Cuboid design
Product series	INQ Cubic Model
Switching output	pnp, 200 mA, antivalent
Voltage drop (max.)	2 V
Switching distance (SN)	40 mm
Standardized measuring plate	120 x 120 x 1 mm
Switching hysteresis (max.)	5 %
LED Anzeige	Yes
Switching frequency	0 Hz … 150 Hz
Ambient temperature during operation	-25 … +85 °C
Protection type	IP 68 / IP 69K
Connection	Clamps, 4-pin
