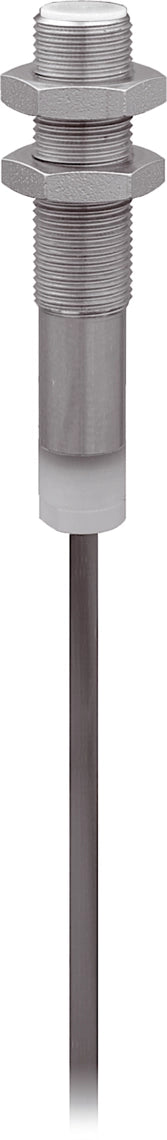

DI-Soric DCE 12 VH 02 PSK Inductive proximity sensor INH

The INH high-temperature-resistant series was specially developed for demanding applications and includes inductive proximity sensors in the designs from M8 to M50 with a switching distance of 2 to 25 mm. They are ideal for use in extreme environments with temperatures of -25 °C to+230 °C thanks to an external evaluation unit. These inductive proximity switches are equipped with PTFE or silicone lines to guarantee maximum resistance to high temperatures and aggressive media.

• Climate change-proof design up to 120 ° C permanent temperature and pressure-resistant up to 10 bar
• Stainless steel housing
• Sensing surface PTFE
• Highly flexible cable
• Integrated amplifier
• Short-circuit protection
• Starting pulse suppression

Service voltage	10 … 33 V DC
Internal power consumption	< 4 mA
Insulation voltage endurance	500 V
Installation type	Flush
Thread	M12 x 1
Housing length	63 mm
Housing material	Stainless steel (V4A 1.4571 / AISI 316Ti) / Plastic (PTFE)
Material of cable	PTFE
Tightening torque	10 Nm
Protection class	III, operation on protective low voltage
Operating principle	inductive
Evaluation	digital
Design	Thread
Characteristics	< 10 bar, < 120°, high-temperature resistant and pressure resistant
Design	High-temperature resistant
Product series	INH High-temperature resistant
Switching output	pnp, 200 mA, NO
Voltage drop (max.)	2 V
Switching distance (SN)	2 mm
Standardized measuring plate	12 x 12 x 1 mm
Switching hysteresis (max.)	10 %
Switching frequency	250 Hz
Ambient temperature during operation	-25 … +120 °C
Protection type	IP 68
Connection	Cable, 2.0 m (flying leads)
