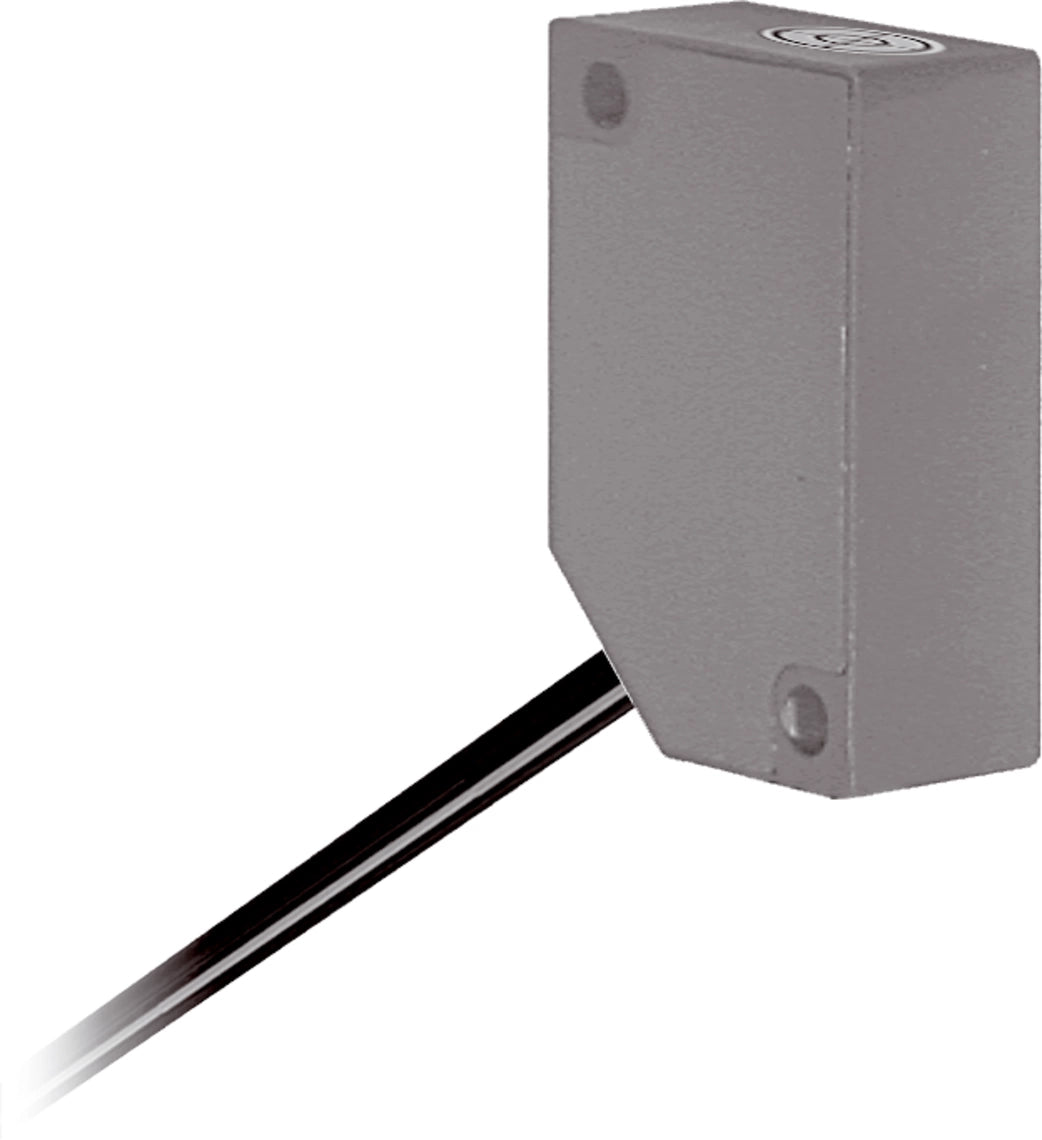

DI-Soric DCR 40 K 04 V PSLK Inductive proximity sensor INQ

The INQ Cube design includes high-performance inductive proximity sensors in sizes 5 x 5 mm, 8 x 8 mm, 40 x 40 mm and the rectangular design in 8 x 16 mm, 28 x 10 mm and 40 x12 mm and enables optimal adaptation to a wide variety of industrial applications. Thanks to the robust plastic or metal housing, these inductive proximity with switching distances of 0.6 mm to 40 mm, they cover a wide range of applications.

• Highly flexible cable
• Integrated amplifier
• Short-circuit protection
• LED

Service voltage	10 … 35 V DC
Internal power consumption	< 10 mA
Insulation voltage endurance	500 V
Installation type	non-flush
Housing dimensions	40 x 12 mm
Housing length	26 mm
Housing height	40 mm
Housing width	12 mm
Housing material	Plastic
Material of cable	Polyurethane
Protection class	III, operation on protective low voltage
Operating principle	inductive
Evaluation	digital
Design	Cuboid design
Product series	INQ Cubic Model
Switching output	pnp, 200 mA, NO
Voltage drop (max.)	2.4 V
Switching distance (SN)	4 mm
Standardized measuring plate	12 x 12 x 1 mm
Switching hysteresis (max.)	< 15 %
LED Anzeige	Yes
Switching frequency	800 Hz … 800 Hz
Ambient temperature during operation	-25 … +70 °C
Protection type	IP 67
Connection	Cable, 2.0 m (flying leads)
